Description

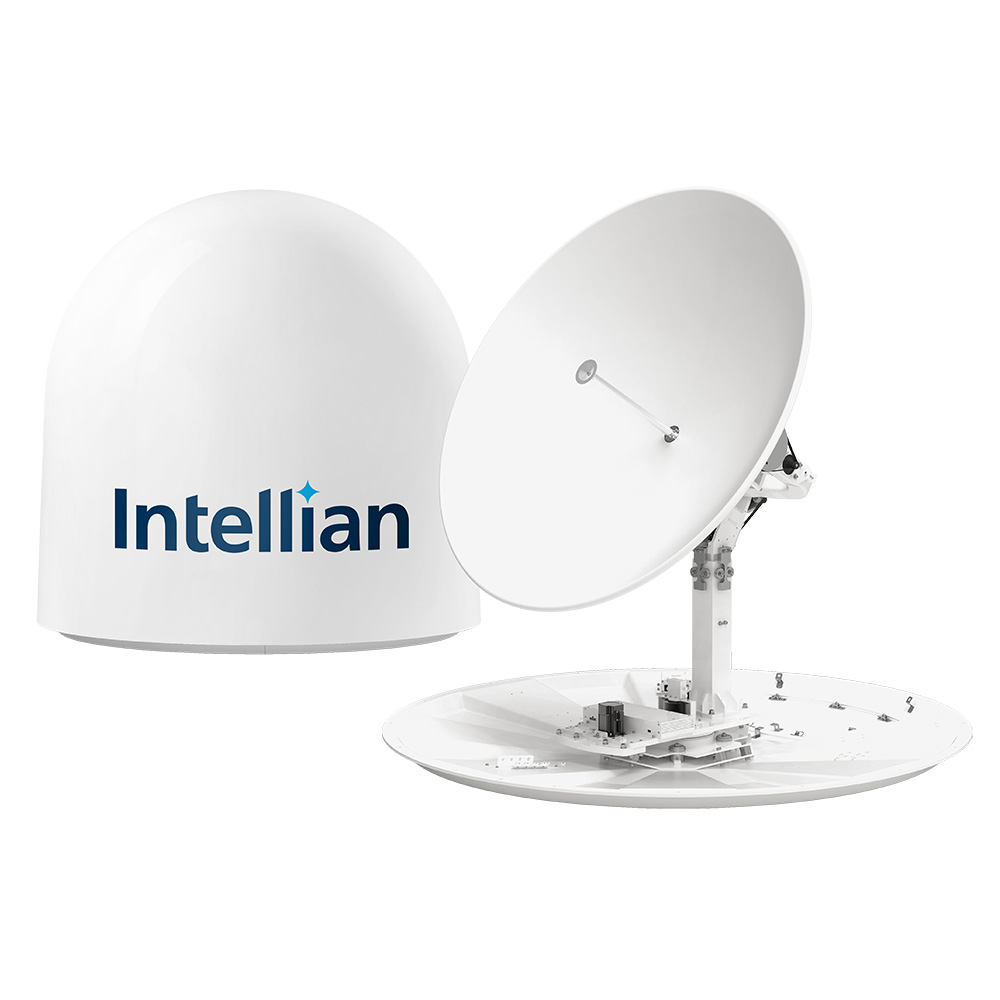

t130N 1.25M Maritime Global Satellite TV Antenna System in v130NX Matching Radome
1.25M Reflector Ku-band global satellite TV system.
The t130N provides outstanding performance with a 1.25m reflector with the added benefits of hardware and pedestal based on our quality-proven VSAT NX terminals. Modular components are used throughout the t-Series range, such as the main control unit and skew assembly. Sharing common modules across Intellian’s t-Series antenna reduces the number of spare parts required.
Features:
- Television everywhere – WorldView™ LNB module will automatically switch to the corresponding Ku-band local frequency and receive the signal without the need to switch the LNB.
- Unlimited azimuth range – With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes.
- Wi-Fi connectivity – The Wi-Fi function enables the ACU to be wirelessly connected. Any kind of wireless device, such as PCs, laptops, and smartphones, can be used to connect to the ACU to manage and control the antenna system.
- AptusNTV – Intellian’s integrated M & C platform, AptusNTV, provides a responsive web user interface. The simple seven-step installation wizard configures the antenna system automatically for easier installation and operation.
- Fully integrated solution – With its Wi-Fi-enabled ACU, users can connect wirelessly to the antenna using AptusNTV. AptusNTV offers users instant diagnostics, performance logging functions, and one-touch updates of firmware and the satellite library. Programmable WorldView™ Ku-band LNB. DVB-S2 Digital TV reception.
- Hardware structure – Modular components are used throughout the t-Series range. Five cable configuration for easy installation. Unlimited azimuth range eliminates the need to wait for the antenna to unwrap the cable length once reached. Dual functionality via external Mediator.
Technical Specifications:
- Radome Dimensions – 66.18" (D) x 67.87" (H)
- Reflector Diameter – 49.21"
- Weight – 284.4lbs
- Azimuth Range – Unlimited
- Elevation Range – -15° – +115°
- Cross-Level Range – ±35°
- Rx Frequency – Ku-Band: 10.7 -12.75 GHz
- Rx Gain – > 42.2 dBi @ 11.7 GHz (w/o Radome)
- LNB Type – Ku-Band WorldView Pre-Programmable
- EIRP – 40.0 dBW (Min.)
- Polarization – Linear & Circular
- Stabilization Accuracy – 0.2° max in the presence of specified ship motions
- Ship Motion (@ 6 seconds) – Roll ±25°, Pitch ±15°, Yaw ±8°. Turning Rate: Up to 10°/sec²
Antenna Dish Diameter = 66.18" | Dome Weight (lbs) = 284.4lbs | Service Coverage = NONE | Voltage - Input Range (Volts) = NONE
