Description

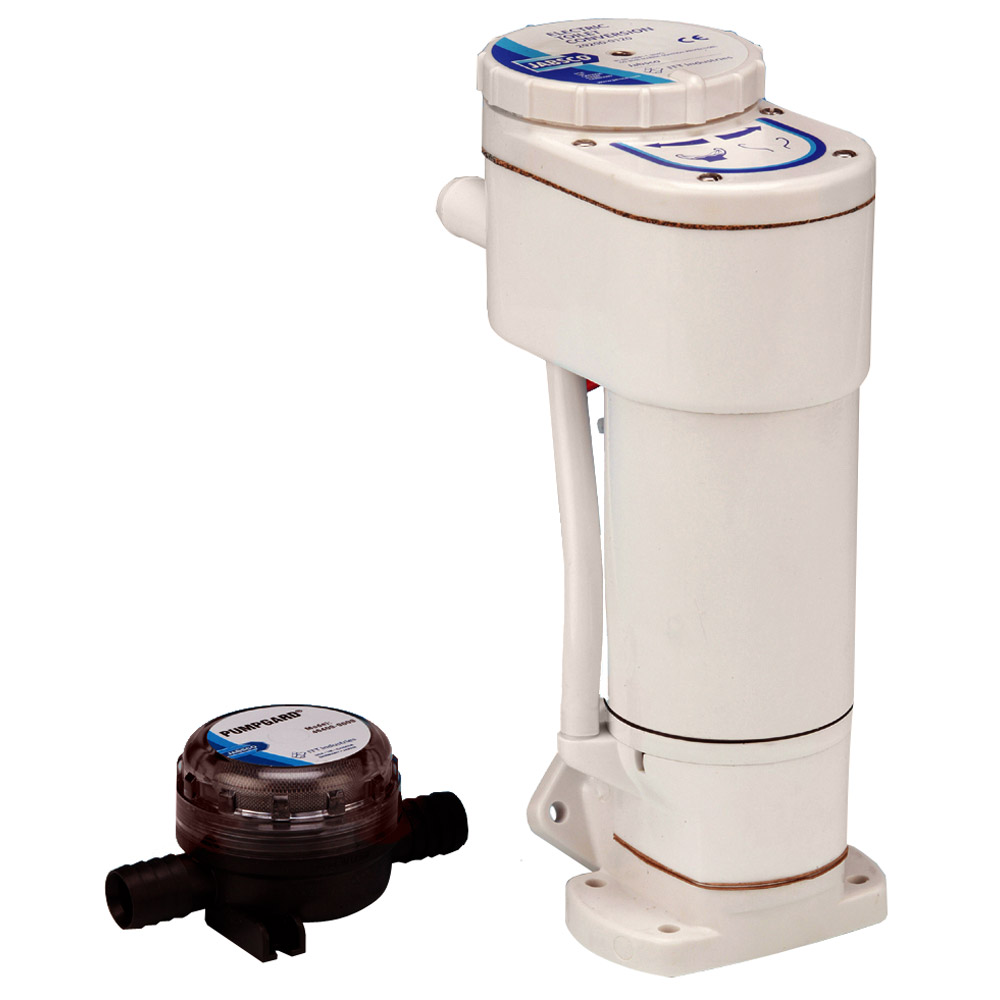

Electric Conversions

Features:

• Directly replaces manual pump assembly
• Easy to Install
• Simple to operate
• Dual action control allows water level to be varied
• Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Adaptors available to fit many other makes
• Suitable for use in above or below waterline installations
• Built in macerator
• Meets EN50081-2 for Electro Magnetic Compatibility (EMC)
• Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection
• Self priming up to 0.6m(2ft)
• Waste pump discharges over an anti siphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface
• Typical power consumption is less than 1.0 amp hour(12 Volt)

Owner Manual

Color = NONE | Gallons Per Hour = NONE | Gallons Per Minute = NONE | Inlet Size = NONE | Operation Method = NONE | Outlet Size = NONE | Rinse Water = NONE | Suction Lift (ft.) = NONE | Volts = NONE | Type = Misc | Size = NONE
