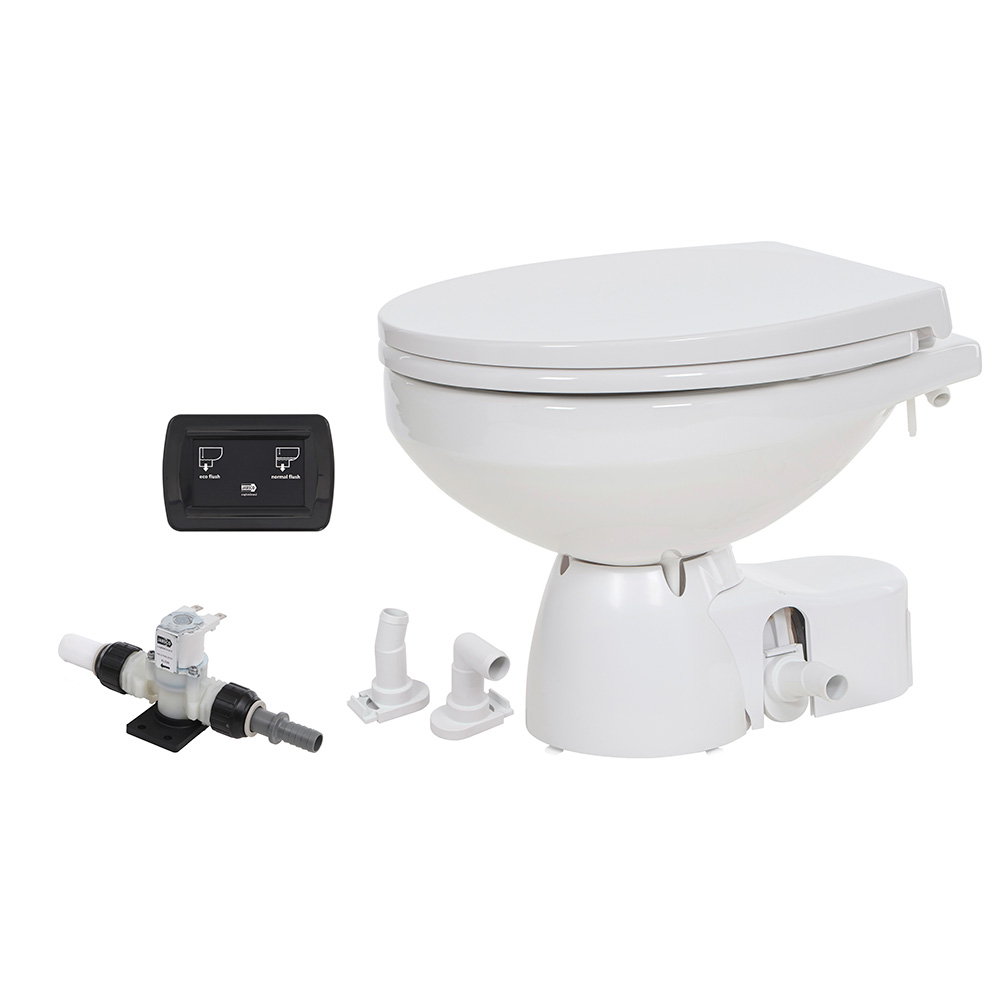

Jabsco Quiet Flush E2 Fresh Water Toilet Regular Bowl – 24V – Soft Close Lid

100816
Jabsco

$1127.99 $758.51

0 in stock
Qty :

Description

Quiet Flush E2 Fresh Water Toilet Regular Bowl – 24V – Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy 2 Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy 2 Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy 2 Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings — including a water-saving, eco-flush cycle.

Installation:

  • Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
  • Discharge pump can be rotated 180° to suit the base orientation and ensure pipework is routed to the rear of the toilet
  • Straight or 90° discharge port for easy install

Quick Release for Easy Servicing:

  • Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
  • C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

  • Stylish low-profile design
  • Touch-sensitive operation
  • Eco flush, full flush, or empty functions
  • Only 1-litre (1-quart) per flush using eco mode
  • Designed for wet room installations
  • No spill ‘empty’ feature to leave bowl dry when boat is in motion

Specifications:

  • Bowl Size: Regular
  • Seat & Lid: Composite
  • Slow-Close Lid: Yes
  • Water: On-board fresh water
  • Device: Solenoid valve
  • Flush Control Switch: Touch Panel
  • Voltage DC: 24
  • Recommended Fuse Size: 15 amp

Dimensions:

  • Height: 14.4 in. (365 mm)
  • Width: 14.8 in. (375 mm)
  • Depth: 18.9 in. (480 mm)
  • Weight: 38.6 lbs (17.5 kg)

Quick Guide Litreture

Brochure Litreture

Color = NONE | Gallons Per Hour = NONE | Gallons Per Minute = NONE | Inlet Size = NONE | Operation Method = NONE | Outlet Size = NONE | Rinse Water = Fresh | Size = NONE | Suction Lift (ft.) = NONE | Type = Toilet | Volts = 24v

Additional information

Model Number 38045-4194RSP
