Description

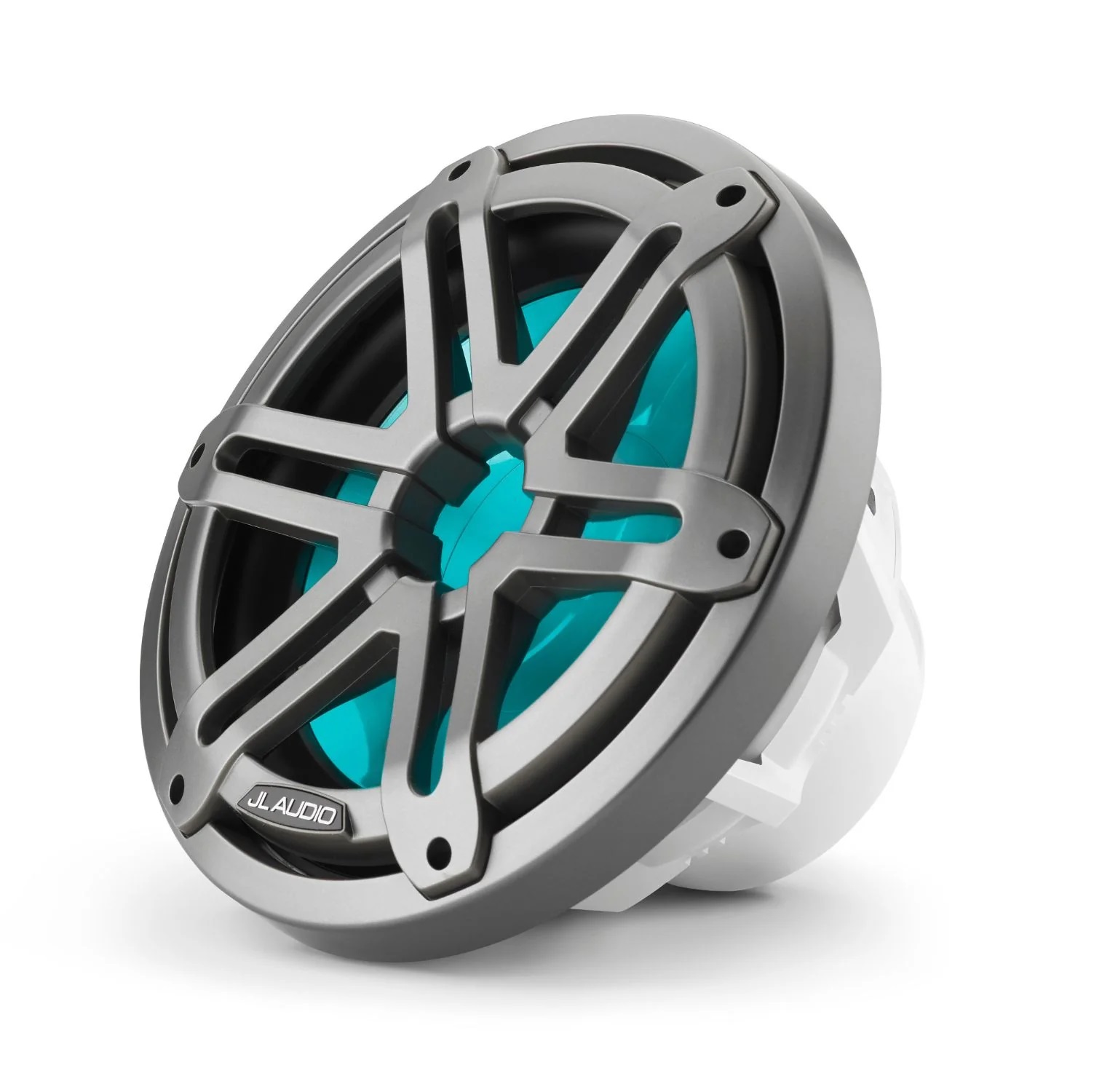

JL Audio M3 10-inch (250 mm) Marine Subwoofer Driver, Gray Metallic Sport Grille with RGB LED Lighting, 4 ohms
Model: M3-10IB-S-Gm-i-4
With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Purpose-engineered and built for real marine duty, the M3 infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications.
Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively glow, adding a dramatic visual experience to your high seas journey. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.
The M3-10 is best used with amplifier power in the 50W – 175W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of this model takes place in JL Audio’s Miramar, Florida factory, using global materials and components.
Specifications
| Continuous Power Handling (RMS) | 175 W |
| Nominal Impedance (Znom) | 4 ohms |
| Free Air Resonance (Fs) | 41.84 Hz |
| Electrical "Q" (Qes) | 0.806 |
| Mechanical "Q" (Qms) | 11.751 |
| Total Speaker "Q" (Qts) | 0.754 |
| One-Way Linear Excursion (Xmax)* | 0.42 in / 11 mm |
| Efficiency (1 W / 1 m)** | 87.23 dB SPL |
| Effective Piston Area (Sd) | 50.68 sq in / 0.0327 sq m |
| DC Resistance (Re) | 3.957 ohms |
| Infinite Baffle Use | Yes (preferred) |
| Min. Sealed Enclosure Volume | 2.0 cu ft / 56.6 L (or larger) |
| Optimum Sealed Enclosure Volume | 2.5 cu ft / 70.8 L |
| * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. | |
| ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder". | |
What’s in the Box:
- M3-10IB
- #8 x 1.50 in (38 mm) screw x 6
- #8 washer x 6
