Description

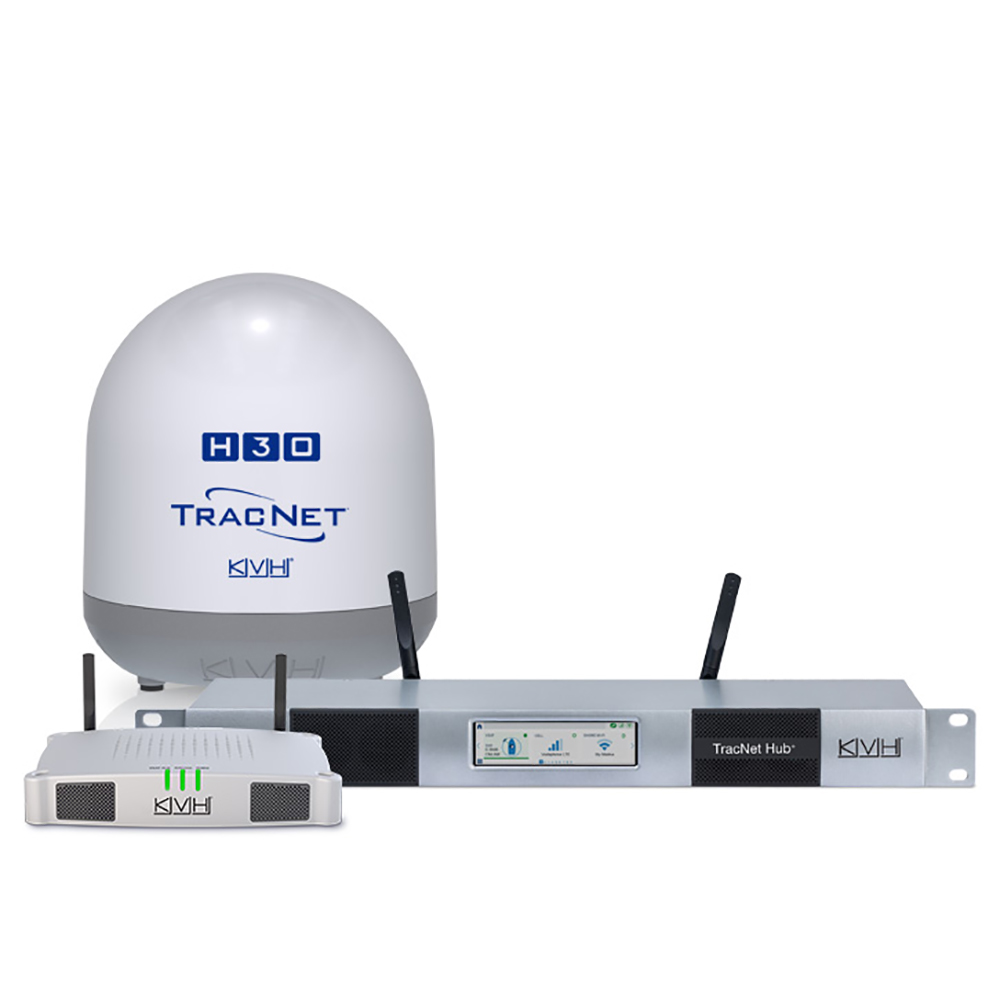

TracNet™ H30 Ku-Band Antenna with TracNet Hub
The TracNet™ H30 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network. The groundbreaking, ultra-compact TracNet H30 includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.
*Subscription required
KVH ONE Hybrid Network
- Global HTS Ku-band satellite network, with 276 million sq km (106+ million sq miles) of coverage, powered by Intelsat
- Cellular support in 150+ countries as far as 32+ km (20+ miles) offshore
- Compatible with shore-based Wi-Fi networks
Features:
- Automatically switches to the best connectivity option based on cost, data quality, and more
- Hybrid connectivity options (VSAT, Cellular, and WiFi)
- Stabilization – Two-axis, stabilized skew
- Single cable install with DC and AC power BDUs (below deck units)
- Cybersecurity – Integrated terminal and network security; optional enterprise-level upgrade
- Up to 51% lighter than competitive systems
- For boats 30+ feet (9+ meters)
- Ultra-high efficiency antenna using KVH’s RingFire™ design and groundbreaking dielectric rod feed for excellent reception even in bad weather
Technical Specifications:
- Dome Diameter – 14.5″ (36.8cm)
- Dome Weight – 24.6 lbs (11.1 kg)
- Maximum Speed Download/Upload – as fast as 6 Mbps/2 Mbps (down/up)
- Elevation/Azimuth Range – 7.7° to 75°/Unlimited rotation
- Operating Temperature – -22°F to 131°F (-30°C to 55°C)
- Power Source – DC provided by the TracNet Hub or Hub+
- Single coax cable connection
