KVH TracNet™ H90 Ku-Band Antenna w/TracNet Hub

95793
KVH

$39995.00 $31964.00

0 in stock
Qty :

Description

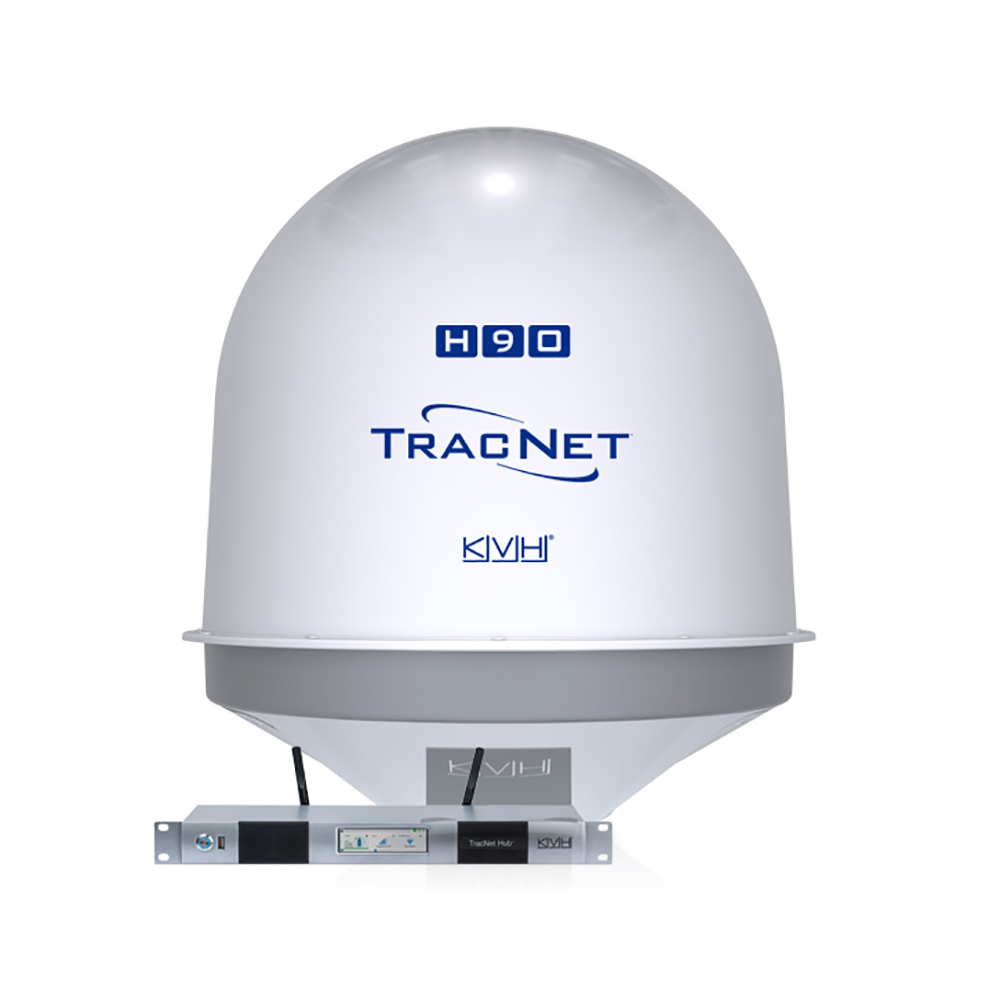

TracNet™ H90 Ku-Band Antenna with TracNet Hub

The TracNet™ H90 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network, and is as much as 32% lighter than competing 1-meter systems. The groundbreaking TracNet H90 features a tuned carbon fiber dish and includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.

*Subscription required

KVH ONE Hybrid Network

  • Global HTS Ku-band satellite network, with 276 million sq km (106+ million sq miles) of coverage, powered by Intelsat
  • Cellular support in 150+ countries as far as 32+ km (20+ miles) offshore
  • Compatible with shore-based Wi-Fi networks

Features:

  • Automatically switches to the best connectivity option based on cost, data quality, and more
  • Hybrid connectivity options (VSAT, Cellular, and WiFi)
  • Stabilization – Three axis, stabilized skew
  • Single cable install with AC power BDUs (below deck units)
  • Cybersecurity – Integrated terminal and network security; optional enterprise-level upgrade
  • Up to 32% lighter than competitive systems
  • For boats 90+ feet (27+ meters)
  • Highly tuned carbon fiber dish paired with KVH’s exclusive RingFire™ technology ensures superior reception

Technical Specifications:

  • Dome Diameter – 42.5″ (1.1m)
  • Dome Weight – 189 lbs (86 kg)
  • Maximum Speed Download/Upload – 20 Mbps/3 Mbps
  • Elevation/Azimuth Range – 23° to 119°/commercial-grade rotary joint for unlimited azimuth rotation
  • Operating Temperature – -22°F to 131°F (-30°C to 55°C)
  • Power Source – AC provided by the TracNet Hub or Hub+
  • Single coax cable connection

Owner Manual

Additional information

Model Number 01-0441-11
