Description

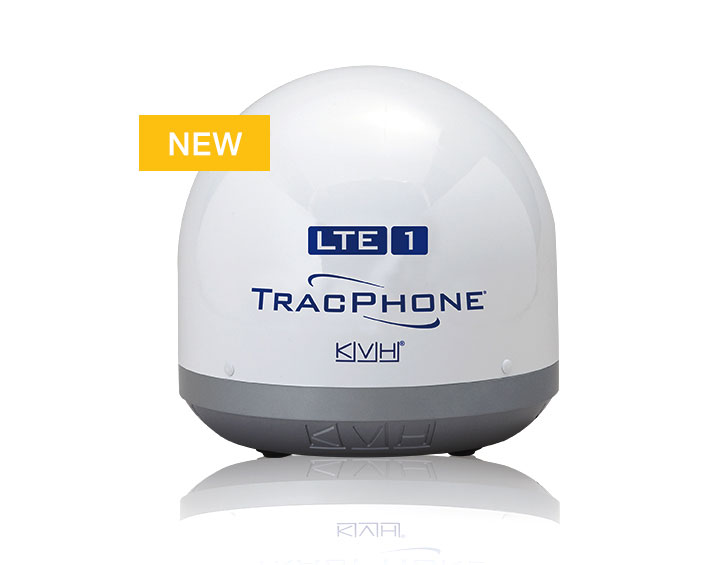

KVH TracPhone LTE-1 Global
Model: 01-0419-01
- Blazing fast onboard connections with no throttling thanks to LTE Advanced (LTE-A) enhanced technology
- High-gain, dual antenna for higher speeds and service up to twice as far offshore than with a personal cell phone
- A worldwide $99/month data plan with overage at the same reasonable prices per GB (per GB price varies by country)
- Customizable email usage alerts
- Ease of an end-to-end solution from the world’s leader in maritime broadband solutions
- Supports Wi-Fi calling for voice service on your cell phone farther offshore*
- Seamless service from regional and local LTE cellular services around the globe
TracPhone(R) LTE-1 Global is an ultra-compact, marine-grade system that includes everything you and your business need to head offshore. With simple plug-and-play installation and operation, the TracPhone LTE-1 Global provides secure Wi-Fi built into the antenna, multi-device connectivity, and easy network management. TracPhone LTE-1 Global simply gives your crew and business more of what you need:
TracPhone LTE-1 Global is an ultra-compact, marine-grade system that includes a high-gain, dual LTE-A antenna array, modem, GPS, and Wi-Fi router in the dome.
The TracPhone LTE-1 Global offers broadband connectivity as far as 32+ km (20+ miles) offshore. LTE coverage is available in more than 150 countries with more than 150 carriers.*
TracPhone LTE-1 Global offers easy access to the built-in Wi-Fi router to configure the Wi-Fi network and the system’s IP-address.
Specifications
| LTE-A/LTE/HSPA+/3G | |
| Antenna Type | 2×2 MIMO/High-gain diversity antennas |
| Wi-Fi Type and Output | IEEE 802.11n/g Wi-Fi; 72 Mbps max |
| Maximum Network Speed | LTE-A (where available) |
| Service Coverage Area | Worldwide (see kvh.com/LTEglobalzones for available countries) More than 32+ km (20+ miles) from nearest tower when mounted >6 m (20 ft) above waterline with unobstructed line-of-sight |
| Hardware | |
| Antenna Diameter x Height | 34.3 cm x 33.8 cm (13.5 x 13.3 in) |
| Antenna Weight | 2.8 kg (6.25 lbs) |
| Antenna Operating Temperature | -25 degC to +55 degC (-13 degF to +131 degF) |
| Antenna Survival Temperature | -25 degC to +70 degC (-13 degF to +158 degF) |
| System Power | 9-36 VDC |
