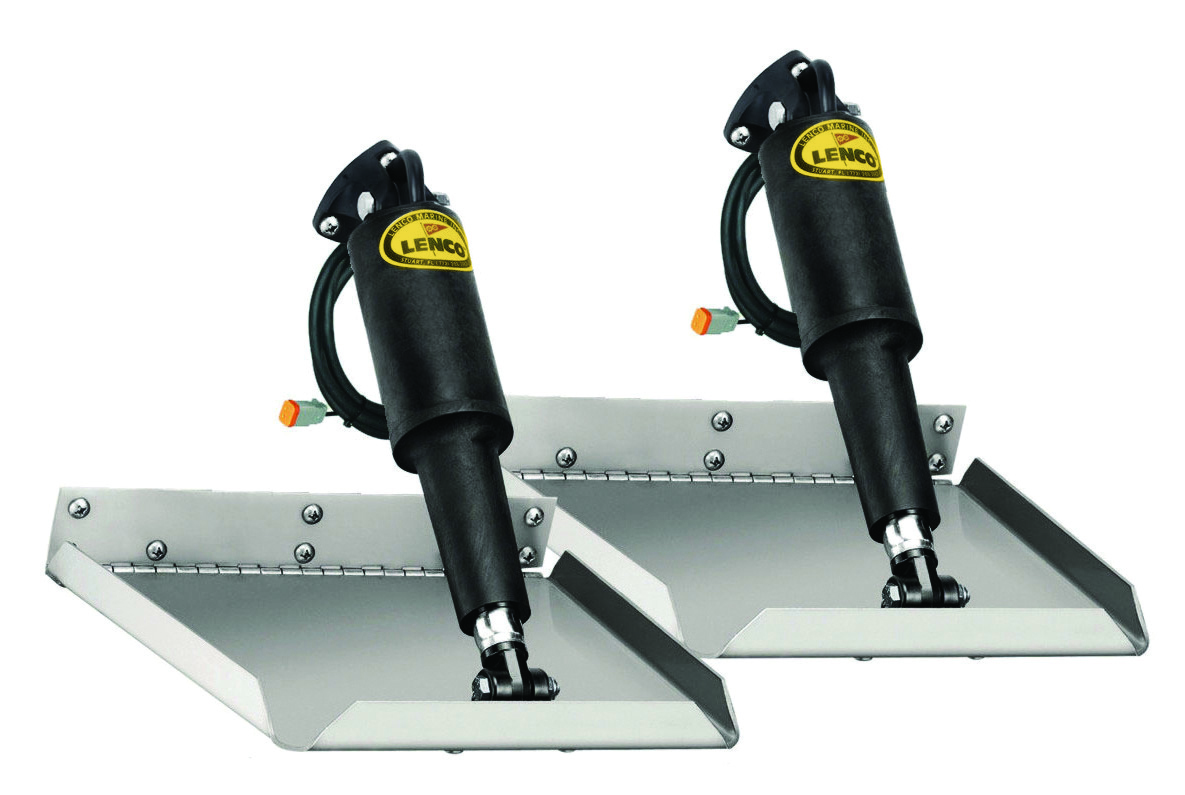

Lenco 12″x12″ Edge Mount Trim Tab Kit 12v Requires Switch

LEN15016101
Lenco Marine

$951.69 $579.42

3 in stock
Qty :

Description

Lenco 12″ X 12″ Edge Mount Trim Tab Kit – Requires Switch

Model: 15016-101

Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5″ (34.29 cm) mounting height on 9″ (22.9 cm) long blades & 11″ (27.94 cm) mounting height on 12″ (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14′ (4.3 m) to 36′ (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1″ (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8″ (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with a mechanical cable gland seal.

Specifications

Plane Size L x W 12″ x 12″
Boat length 17′ – 30′
Hinge Height 2″
Min Transom Height 13.5″
Voltage 12vDC

What’s in the Box:

  • (2) 12-gauge stainless steel standard finish blades
  • (2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
  • (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
  • Lenco owner’s/installation manual
  • Stainless steel mounting hardware

Additional information

Weight 18.00 lbs
Model Number 15016-101
UPC 874847004374
