Description

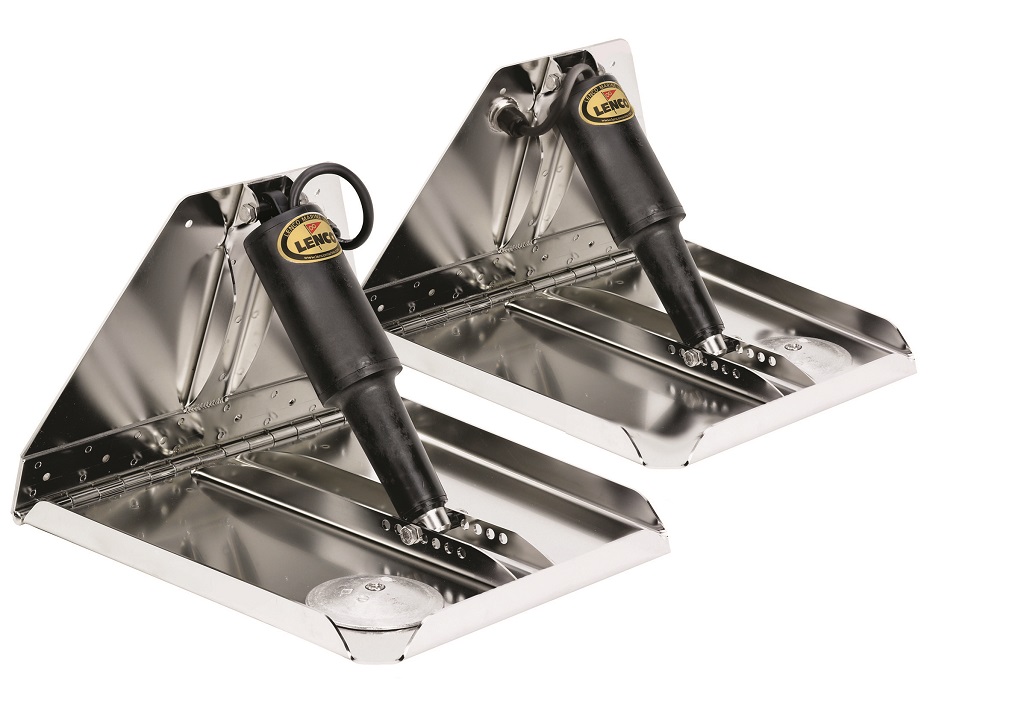

Lenco 12″ X 12″ Heavy Duty Perfomance Trim Tab Kit – Requires Switch
Model: 15041-101
The Heavy Duty series is designed & built for the boats that need extra strength to support them in rougher water at higher speeds. Boat lengths 18’ (5.5 m) to 42’ (12.8 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin. Full transom back plate with welded on stainless steel upper & adjustable lower actuator mounting brackets, 5/16 (.8 cm) stainless steel mounting bolts & mechanical strain-relief cable seals. 3.75" (9.5 cm) sacrificial anodes installed.
Note: Boat-mounting hardware to be supplied by the customer
Specifications
| Plane Size L x W | 12″ x 12″ |
| Boat length | 18′ – 34′ |
| Min Transom Height | 10.5″ |
| Voltage | 12vDC |
What’s in the Box:
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15055-001 XD Extreme Duty actuators with 6’ (1.8 m) leads & Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
- Lenco owner’s/installation manual
