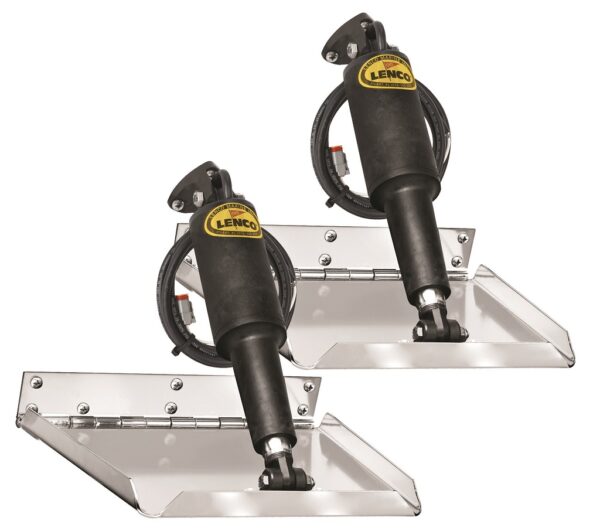

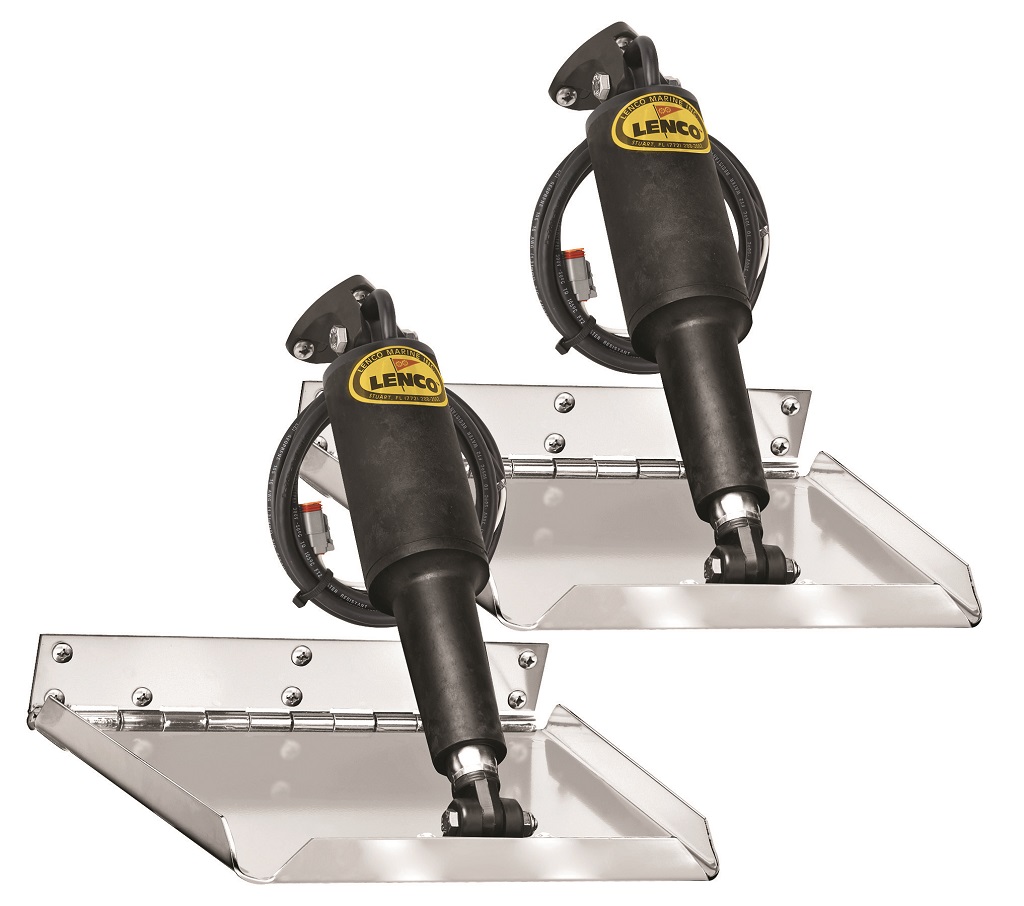

Lenco 12″x12″ Performance Trim Tab Kit 12v Requires Switch

LEN15037101
Lenco Marine

$1063.91 $647.74

1 in stock
Qty :

Description

Lenco 12″ X 12″ Perfomance Trim Tab Kit – Requires Switch

Model: 15037-101

Lenco’s first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin.

Specifications

Plane Size L x W 12″ x 12″
Boat length 18′ – 32′
Hinge Height 2″
Min Transom Height 11″
Voltage 12vDC
Finish Electro-Polish

What’s in the Box:

  • (2) 12-gauge stainless steel Electro-Polished blades
  • (2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
  • (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
  • Lenco owner’s/installation manual
  • Stainless steel mounting hardware

Additional information

Weight 19.00 lbs
Model Number 15037-101
UPC 874847004596
