Lenco 12″x12″ Standard Mount Trim Tab Kit 12v with Double Rocker Switch

LEN15103104
Lenco Marine

$1010.32 $615.11

8 in stock
Qty :

Description

Lenco 12″ X 12″ Standard Mount Kit 12v with Double Rocker Switch

Model: 15103-104

Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.

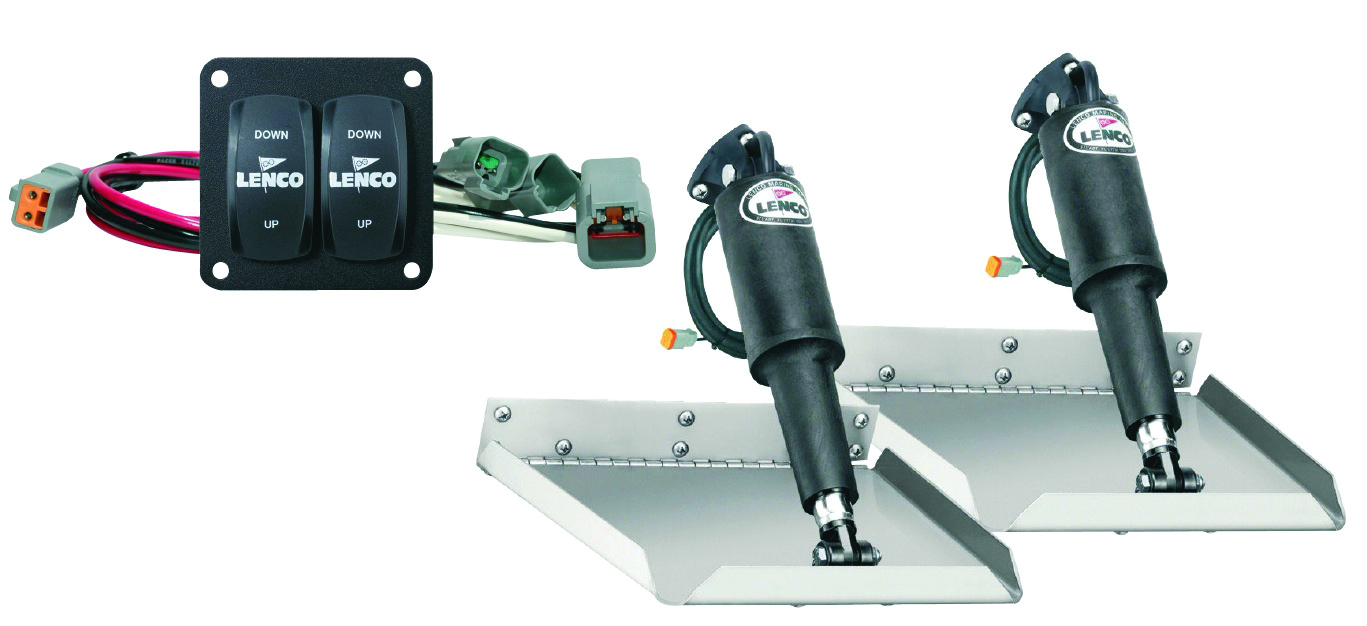

What’s in the Box:

  • (2) 12-gauge stainless steel standard finish blades
  • (2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors
  • (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
  • Lenco owner’s/installation manual
  • Stainless steel mounting hardware
  • Double Rocker Switch

Additional information

Weight 19.00 lbs
Model Number 15103-104
UPC 874847000147
