Lenco 12″x24″ Standard Mount Trim Tab Kit 12v Requires Switch

LEN15009101
Lenco Marine

$1138.30 $693.03

2 in stock
Qty :

Description

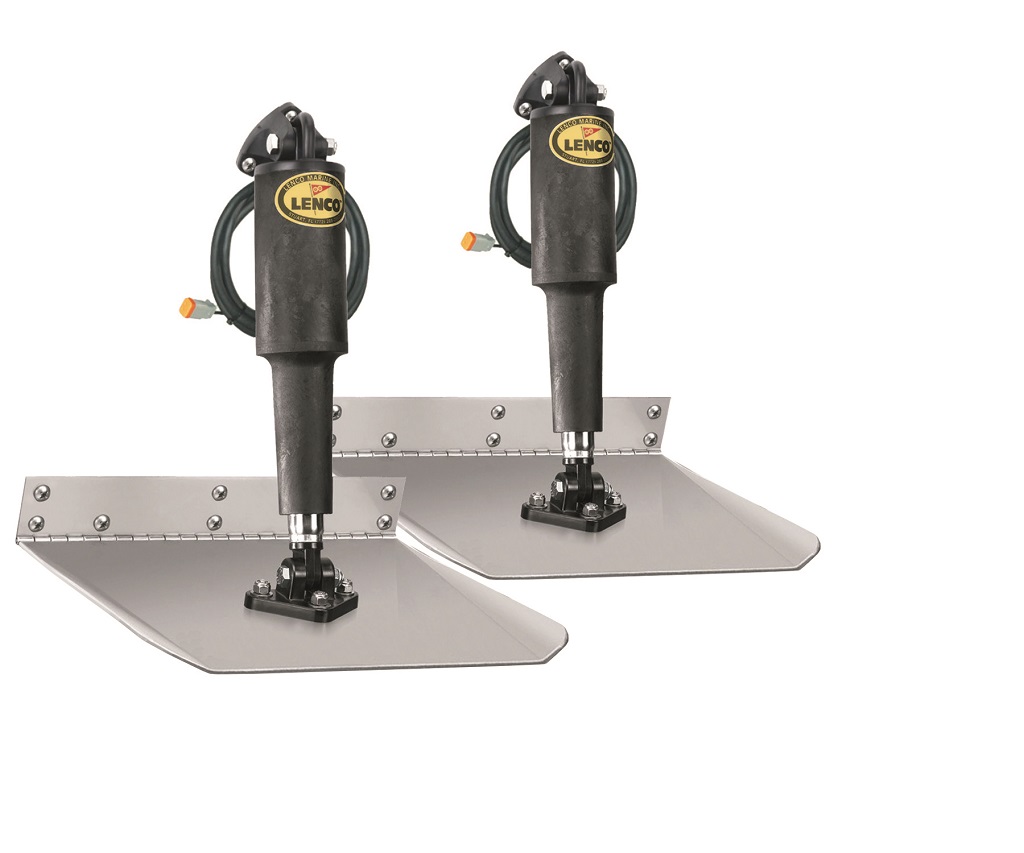

Lenco 12″ X 24″ Standard Mount Trim Tab Kit – Requires Switch

Model: 15009-101

The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Specifications

Plane Size L x W 12″ X 24″
Boat length 30′ – 44′
Hinge Height 1″
Min Transom Height 14″
Voltage 12vDC

What’s in the Box:

  • (2) 12-gauge stainless steel standard finish blades
  • (2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
  • (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
  • Lenco owner’s/installation manual
  • Stainless steel mounting hardware

Additional information

Weight 31.00 lbs
Model Number 15009-101
UPC 874847004305
