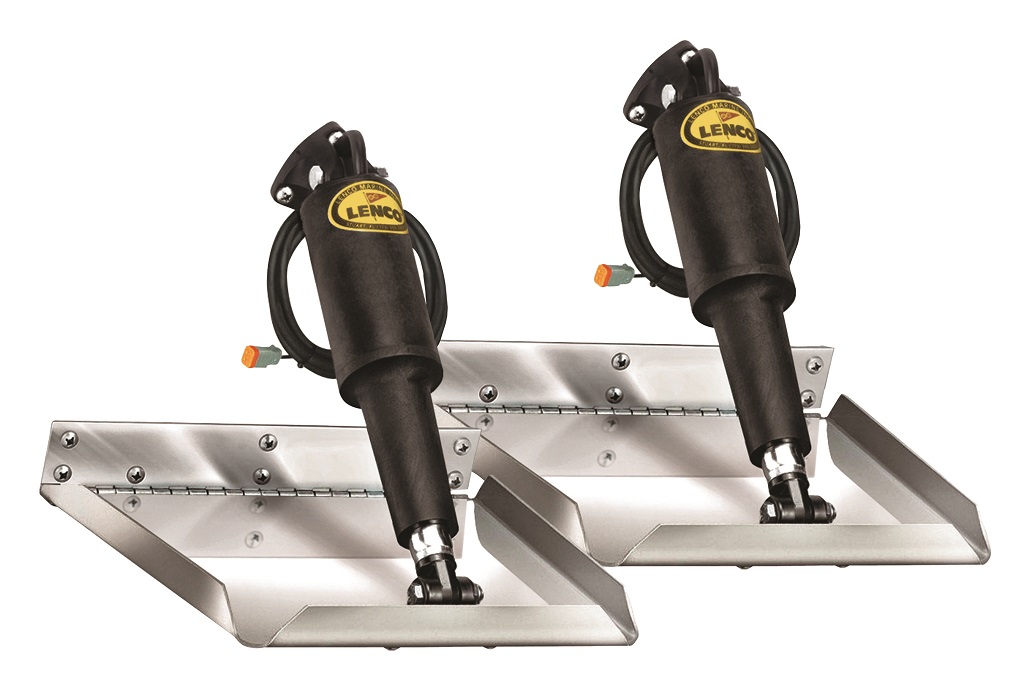

Lenco 12×9″ Edge Mount Trim Tab Kit 12v Electro Polished
Model: 15115-101
All the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12 in (30.5 cm) blades giving them a 3 in (7.6 cm) lower mounting height. Boat Lengths 14 feet (4.3 m) to 30 feet (9.1 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1 in (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8 in (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
Specifications
| 12 in X 9 in | |
| Boat Length | 14 feet – 18 feet (4.27m – 5.49m) |
| Hinge Height | 2 in (5.1 cm) |
| Min Transom Height | 11 in (27.9 cm) |
What’s in the Box:
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuators with 6 feet (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses – 20 feet (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
“
