Lenco 17″ x 12″ Extreme Duty Performance Trim Tab Kit w/o Switch Kit 12V

29259
Lenco Marine

$2133.13 $1327.20

0 in stock
Qty :

Description

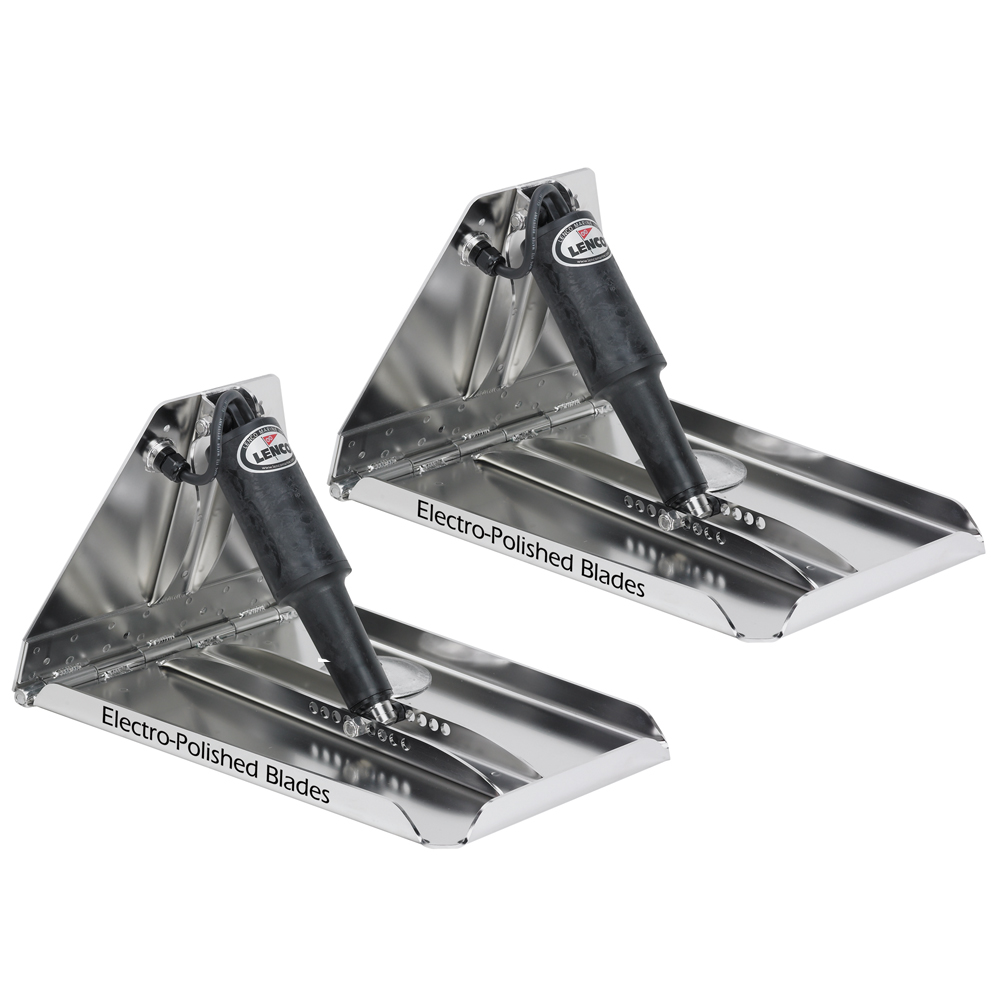

17″ x 12″ Extreme Duty Performance Trim Tab Kit w/o Switch Kit- 12V -Single Actuator Kit

Lenco Electric Extreme Duty Polished Blade Trim Tab Kits feature fast response actuators for precise control. They are fully submersible and feature Plug & Play Deutsch connections. Blades are Electro-Polished 10 Gauge – 304 SS with 1″ turned up edges, an 85 degree inside taper and 3/8″diameter hinge pin. Extreme Duty actuators with 3/8″ SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75″ sacrificial anodes.

Kit Contents:

  • 2 each of stainless steel trim tab planes
  • 2 each of #15056-001XD extreme duty actuators with 6″ lead & Deutsch plugs
  • Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75″ sacrificial anodes.

The following to be supplied by customer:

  • Boat mounting hardware
  • Actuator extension harnesses (2 for single actuator application or 4 for dual)
    will be required. Order the lengths of your choice. See the Lenco
    Accessories section.

Specifications:

  • Suggested Boat Length: 20′ to 40′
  • Length of Tab: 17″
  • Width of Tab: 12″
  • Minimum Transom Height: 10.5″
  • Blades: 10 Gauge Stainless Steel
  • Finish: Electro-Polished
  • Switch Kit: Sold Separately
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Switch Required: 10222-211D, 15069-001 or 15070-001
  • Actuators: 12-volt

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Actuator Type = NONE | Construction = NONE

Additional information

Weight 25 lbs
Dimensions 25 × 14 × 7 in
Model Number 15045-101
UPC 874847004671
