Description

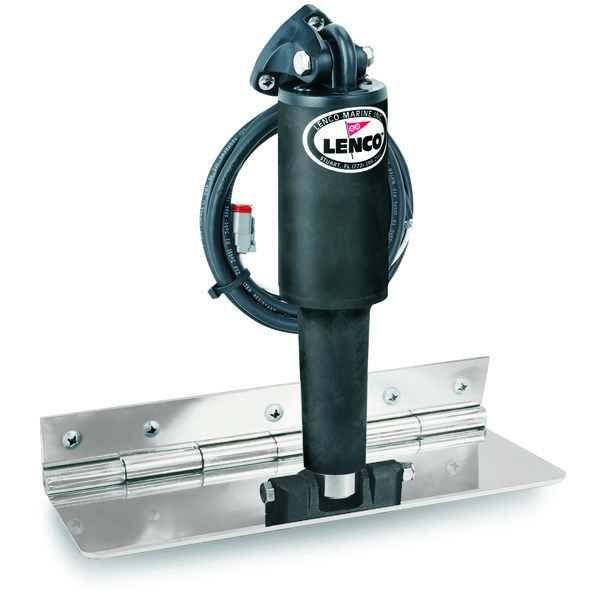

Lenco 4″ x 12″ Standard Finish – Requires Switch
Model: 15052-101
Engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. Boat lengths 14’ (4.3 m) to 25’ (7.6 m). Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8"(9.5 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
Specifications
| Plane Size L x W | 4″ x 12″ |
| Boat length | 14′ – 25′ |
| Min Transom Height | 13″ |
| Voltage | 12vDC |
| hinge height | 2″ |
| Blade Finish | Standard |
What’s in the Box:
- (2) NEW 11-gauge stainless steel blades with option of standard finish or Electro-Polish finish
- (2) actuators with 6′ (1.8 m) lead and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- Lower mounting brackets included
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
