Lenco 9inx12in Standard Mount Trim tab Kit 12v LED Integrated Switch

Lenco 9inx12in Standard Mount Trim tab Kit 12v LED Integrated Switch

LEN15108103
Lenco Marine

$865.66

0 in stock
Qty :

Description

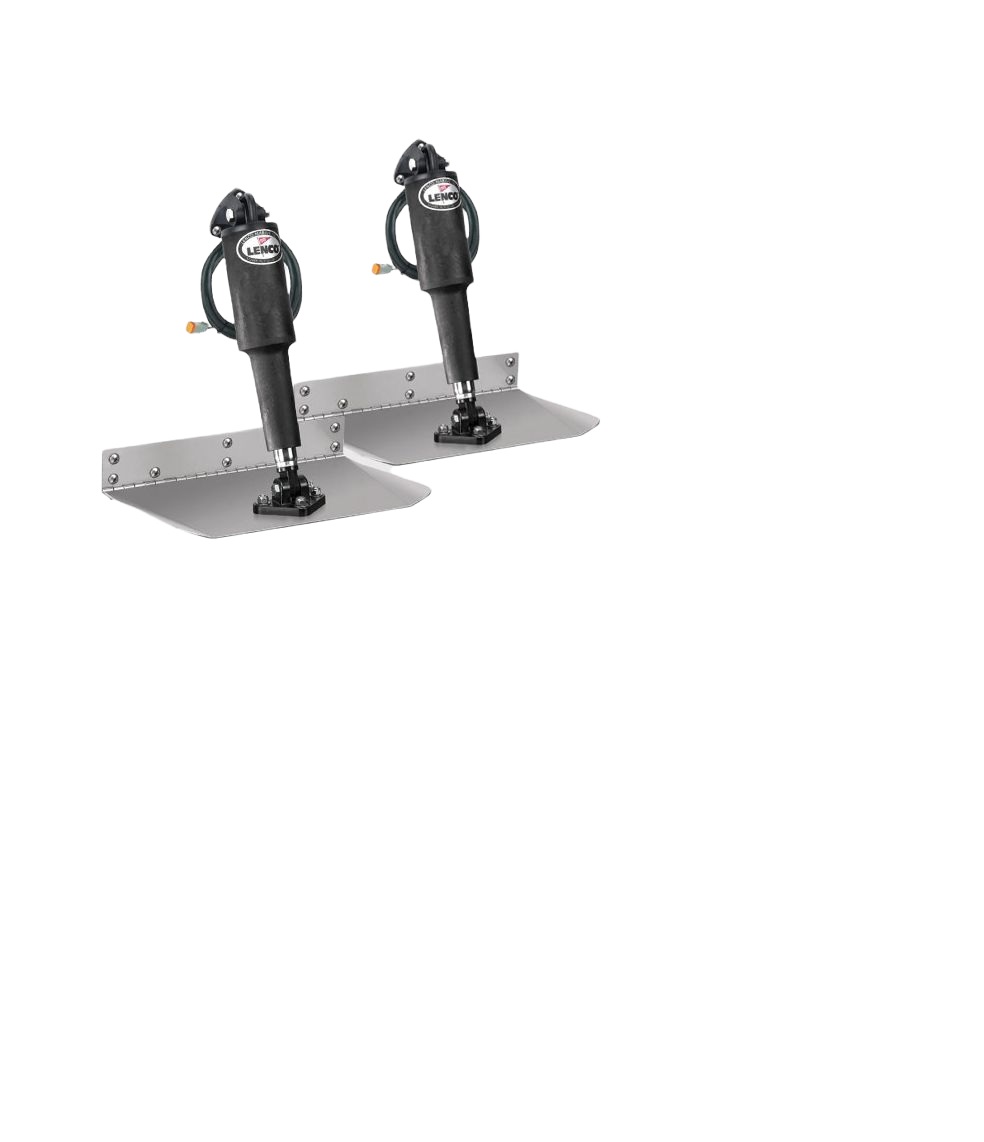

Lenco 9×12″ Standard Mount Trim tab Kit 12v with LED Integrated Switch

Model: 15108-103

Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16 feet (4.9 m) to 30 feet (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8 in (1.6 cm) flared trailing edge & 1/8 in (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.

What’s in the Box:

  • (2) 12-gauge stainless steel standard finish blades
  • (2) 15054-001 actuators with 6 feet (1.8 m) leads and Deutsch connectors
  • (2) 30133-103 actuator extension wiring harnesses – 20 feet (6.1 m) length
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
  • Lenco owner’s/installation manual
  • Stainless steel mounting hardware
  • LED Integrated Switch

    • “

Additional information

Weight 18.00 lbs
UPC 874847006279
