Description

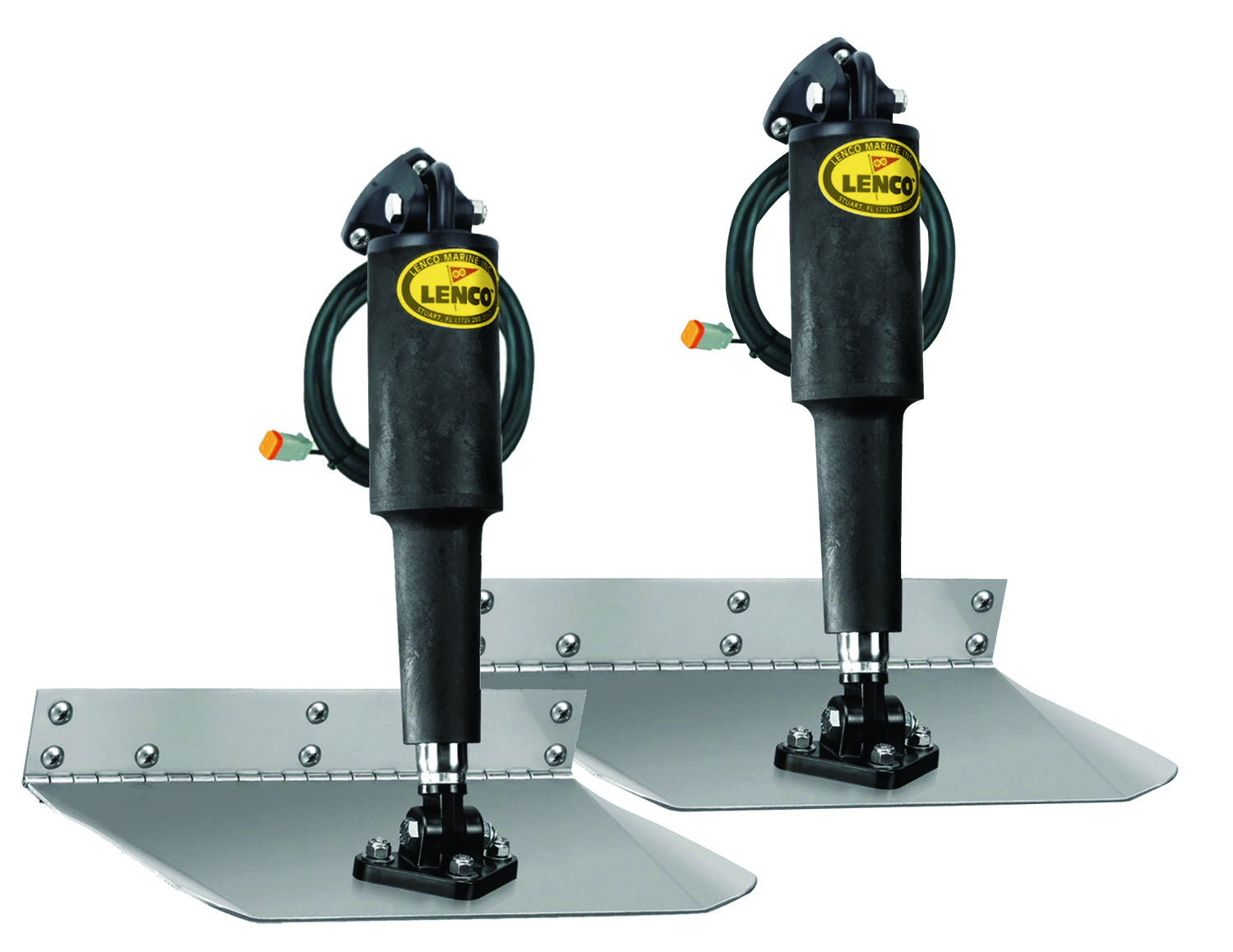

Lenco 9″ X 36″ Standard Mount Trim Tab Kit – Requires Switch
Model: 15005-101
The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14’ (4.3 m) to 69’ (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
Specifications
| Plane Size L x W | 9″ x 36″ |
| Boat length | 34′ – 65′ |
| Hinge Height | 1″ |
| Min Transom Height | 14″ |
| Voltage | 12vDC |
What’s in the Box:
- (2) 12-gauge stainless steel standard finish blades
- (2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
