Lenco LED Two-Piece Indicator Switch with Pigtail for Single Actuator Systems

LEN15270001
Lenco Marine

$649.24 $365.54

4 in stock
Qty :

Description

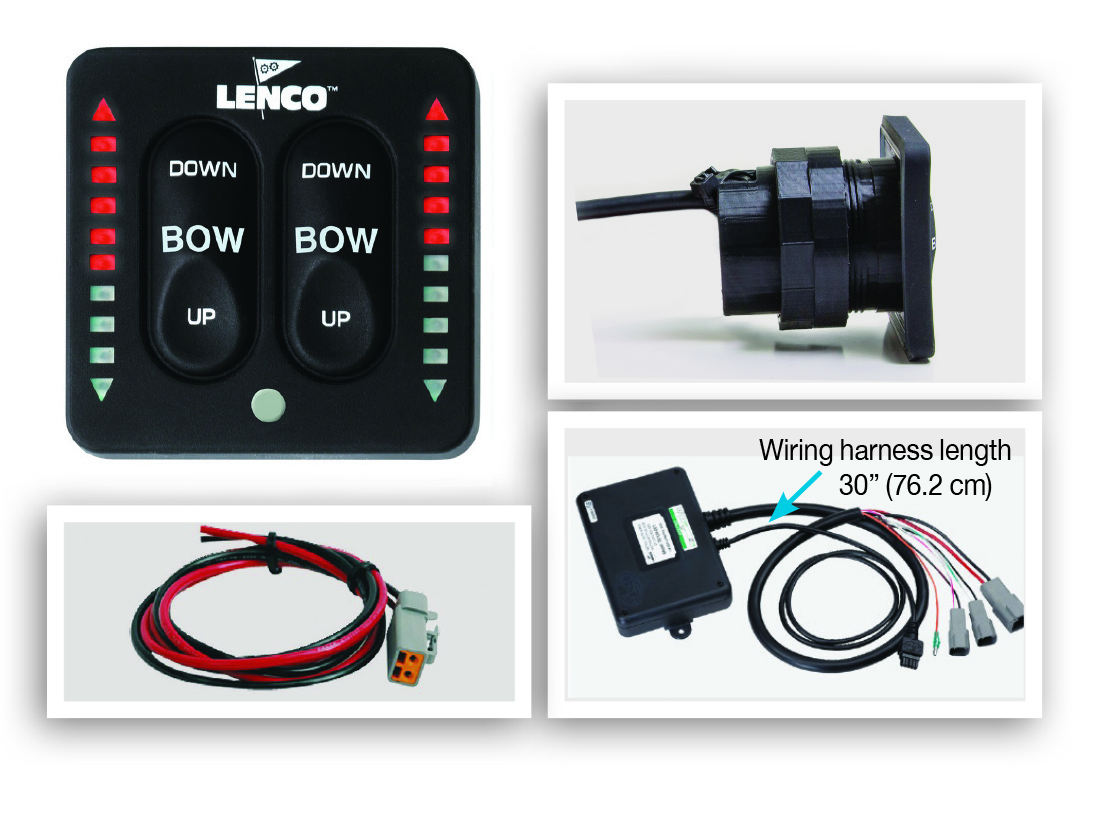

Lenco LED (TWO-PIECE) Switch Kit (Single Actuator)

Model: 15270-001

  • Simple, quick, Plug & Play installation
  • Instant response
  • Built-in retractor
  • Self-contained, sealed key pad & solid state control box with waterproof Plug & Play Deutsch connectors
  • Backlit key pad for optimum viewing at night
  • 2 1/16″ hole cut-out size, overall key pad size of 2.75″ x 2.75″
  • 2.33″ clearance required from the back of the key pad’s mounting location
  • 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
  • Photo Eye for optimum viewing in all light conditions
  • Self-Check feature

This LED tactile switch kit has a shortened bezel for consoles which require less depth to mount. Functionality is built into the externally mounted control box and must be mounted separately. LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.

What’s in the Box:

  • LED Switch
  • Control Box
  • 36″ power pigtail for control box

Additional information

Weight 2.00 lbs
Model Number 15270-001
UPC 874847007597
