Description

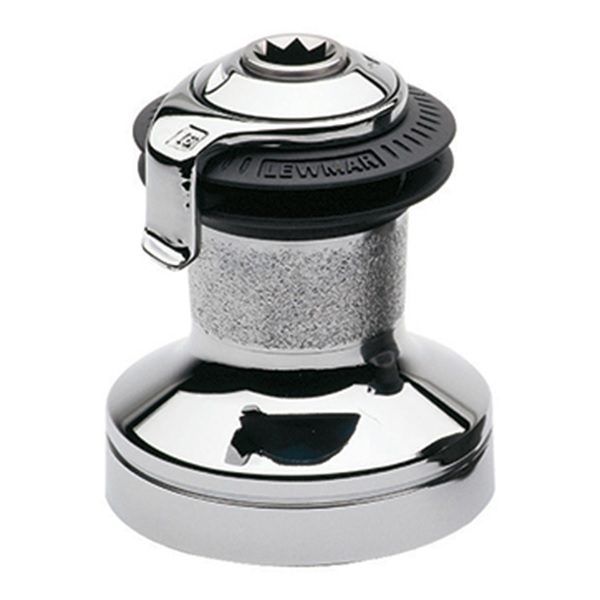

The Lewmar 'Wavespring' self-tailer combines their renowned and gentle wave grip feature with self adjusting springs. It handles today's smaller diameters, as well as the traditional larger Dacron composite ropes. A sleek, minimum-friction feeder arm provides absolute snag-free operation.
Mounting Instructions
5 x M6 (1/4 in) c'sk head screws on 94mm (3 11/16 in) PCD. Lewmar recommends that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch. This product is Made to Order. |
|
|
| Gear Ratio |
Power Ratio |
Weight(lb) |
| 2:1 |
15.8:1 |
8.6 |
|
|
|
| Drum Diameter D(in) |
Base Diameter B(in) |
Height H(in) |
Line Entry L(in) |
Line Size(in) |
| 2 9/16 |
4 3/4 |
5 3/4 |
2 5/16 |
5/16-1/2 |
|
