Description

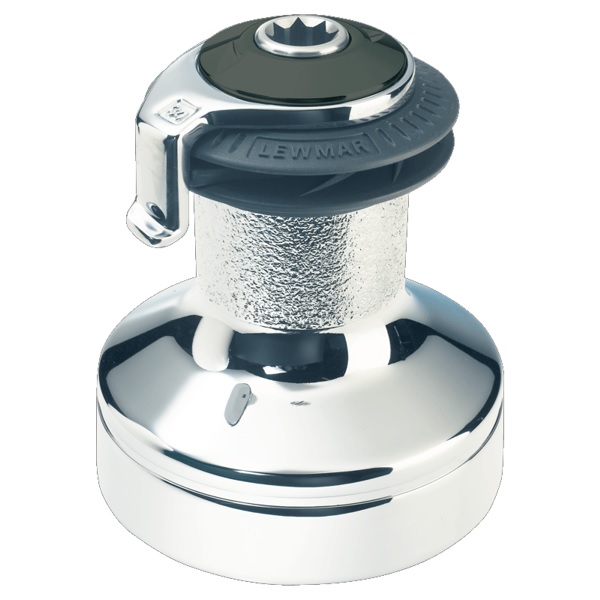

The Lewmar 'Wavespring' self-tailer combines their renowned and gentle wave grip feature with self adjusting springs. It handles today's smaller diameters, as well as the traditional larger Dacron composite ropes. A sleek, minimum-friction feeder arm provides absolute snag-free operation.
Mounting Instructions
5 x M6 (1/4 in) c'sk head screws on 113mm (4 7/16in) PCD. Lewmar recommends that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch. |
| |
|
|
| Gear Ratio 1st/2nd |
Power Ratio 1st/2nd |
Weight(lb) |
| 2:1/4.2:1 |
13.8:1/29.2:1 |
12.3 |
|
|
|
| Drum Diameter D(in) |
Base Diameter B(in) |
Height H(in) |
Line Entry L(in) |
Line Size(in) |
| 2 15/16 |
5 7/16 |
6 5/16 |
2 11/16 |
5/16?1/2 |
|
