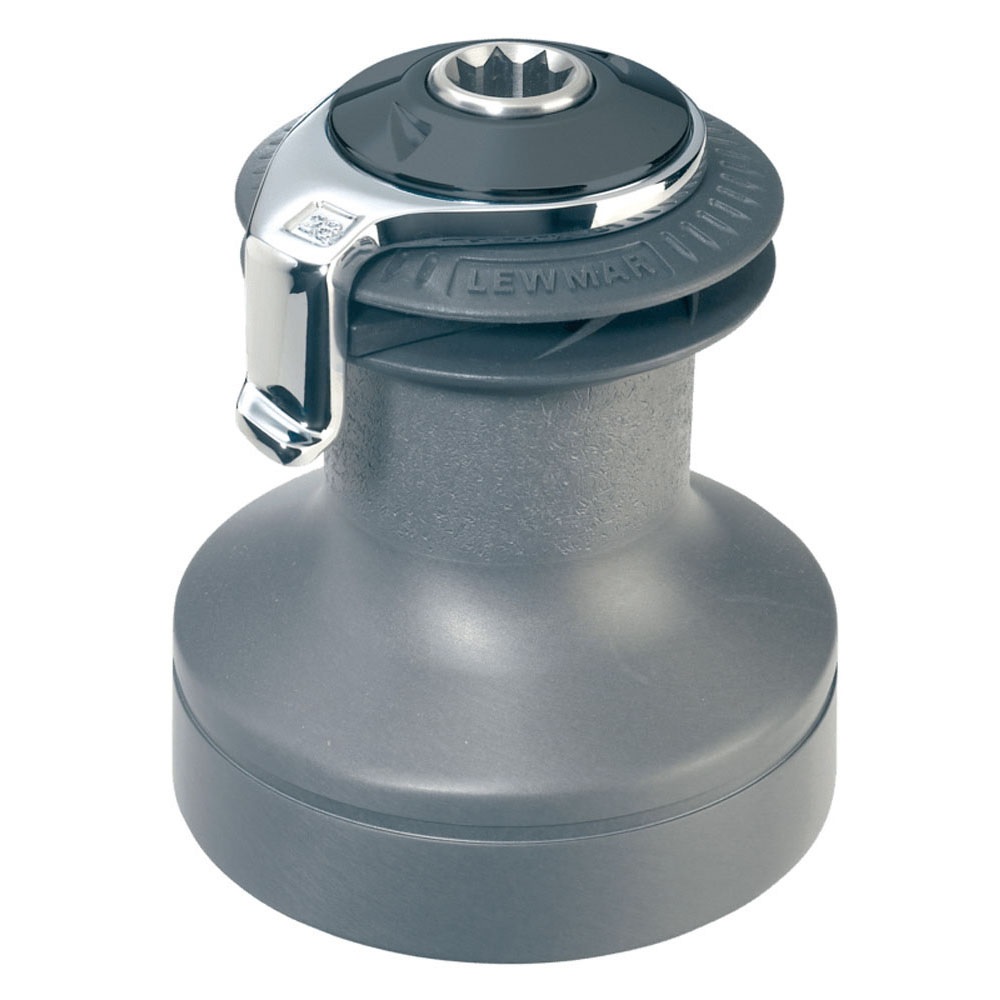

Lewmar 46AST Two Speed Self Tailing Aluminum Winch

LEW49046055
Lewmar

$3282.95 $1956.59

0 in stock
Qty :

Description

The Lewmar 'Wavespring' self-tailer combines their renowned and gentle wave grip feature with self adjusting springs. It handles today's smaller diameters, as well as the traditional larger Dacron composite ropes. A sleek, minimum-friction feeder arm provides absolute snag-free operation.

Mounting Instructions 5 x M8 (5/16 in) c'sk head screws on 136mm (5 11/32 in) PCD. Lewmar recommend that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch. This product is Made to Order.

  Specifications
Gear Ratio 1st/2nd Power Ratio 1st/2nd Weight(lb)
2.4:1/7.6:1 13.9:1/44.8:1 15.8
  Dimensions
Drum Diameter D(in) Base Diameter B(in) Height H(in) Line Entry L(in) Line Size(in)
3 7/16 6 5/8 7 9/16 3 5/16 5/16?9/16



Additional information

Weight 17.00 lbs
Model Number 49046055
UPC 743683002892
