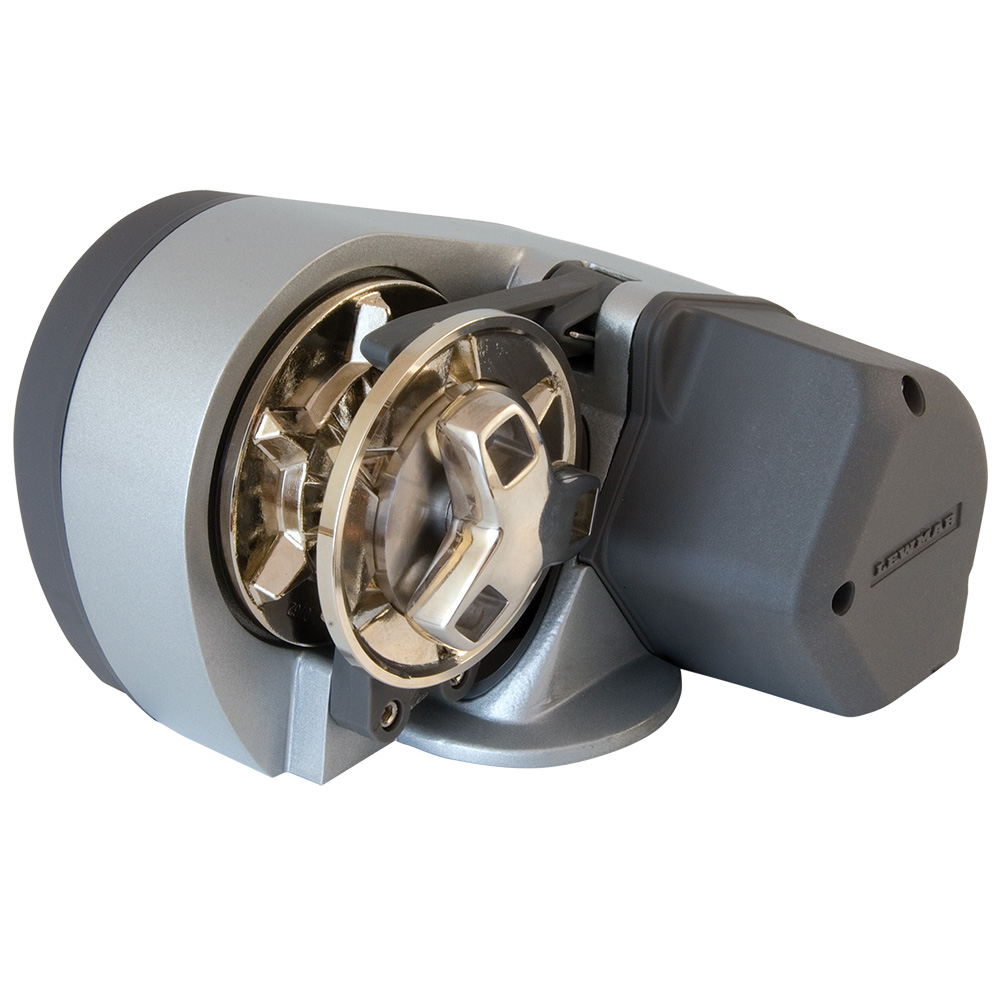

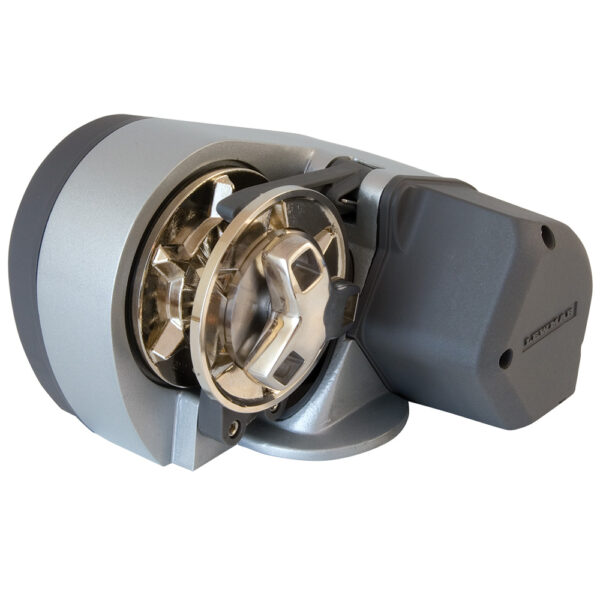

Pro-Sport 550G Horizontal Windlass Kit – 12V
Lewmar’s Pro-Sport windlass is designed as an economical package for rope and chain applications, without compromise on quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors.
Its rugged aluminum center case and durable composite side covers make Pro-Sport the perfect choice. Complete with push-button control, anchoring has never been easier.
Features:
- Low power consumption / current draw
- Dual direction powered operation
- Convenient above-deck installation
- Manual freefall
- DIY ready
Technical Specifications:
- Chain Size – 1/4″ G4 or BBB
- Rope Size – 1/2″ 3-strand or 8-plait
- Motor Voltage – 12 Volt DC
- Motor Power – 150 Watt
- Maximum pulling power – 550lb (250kg)
- Maximum Working Load – 137lb (62.12kg)
- For boats up to 28′ (9M)
In the Box:
- Windlass
- Base gasket
- Mounting hardware
- Circuit breaker
- Contactor
- Rocker switch
- Instruction manual
*Sold as an Individual
Chain - Diameter (Inches) = NONE | Freefall = NONE | Rope Diameter (Inches) = NONE | Vertical/Horizontal = NONE
