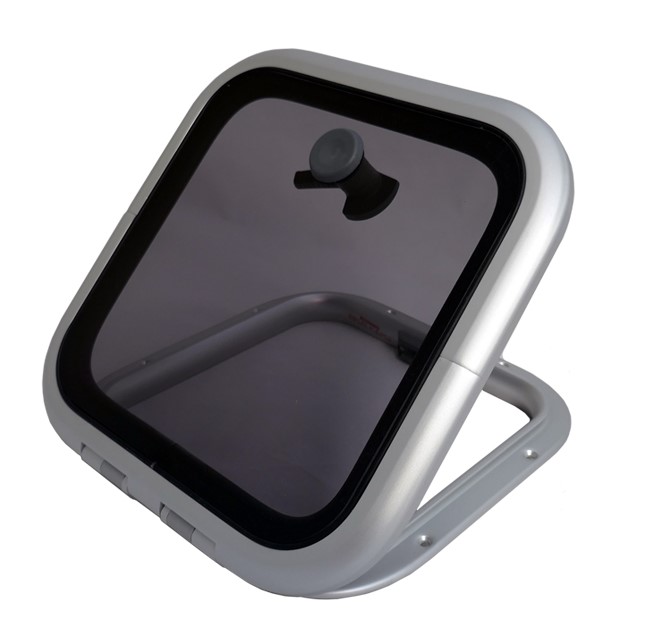

Description
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 4.9 | 5/16 |
Dimensions
| Length (in) | Width (in) | Height (in) | Radii (in) | Cut-Out Length (in) | Cut-Out Width (in) | Cut-Out Radii (in) |
| 13 | 13 | 1 | 2 7/8 | 10 1/4 | 10 1/4 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
