Description

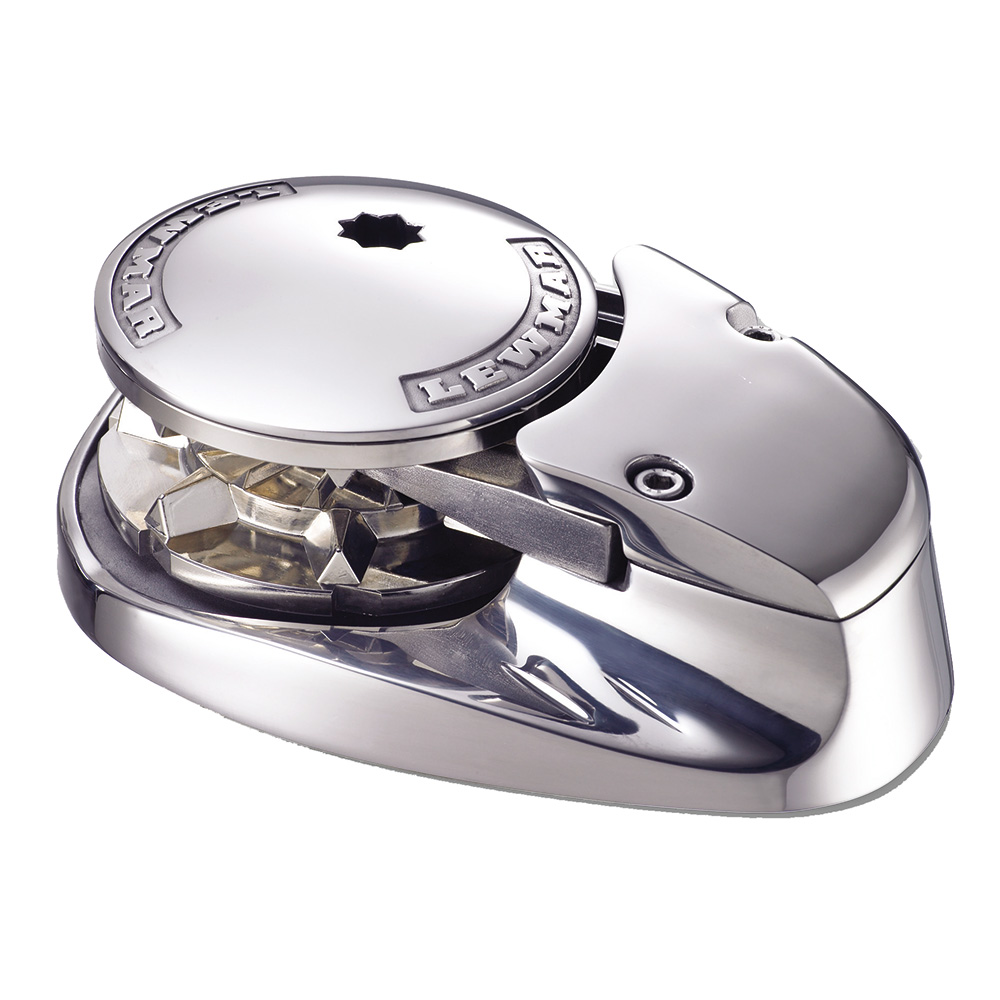

V700 Vertical Windlass Kit – 12V

With 100%  316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market.  It works at the push of a button and has two built-in features that make it unique – motor protection and anchor lock.

The V700 comes with a gypsy able to accept 1/4 inch chains.

Features:

• For rope, chain, or combination rodes
• Built-in motor protection and fail-safe anchor lock
• Easy installation
• Fast line speed
• Manual recovery option
• Impact-resistant cover

Technical Specifications:

• Material – Stainless Steel
• Maximum Pull – 700lbs
• Maximum Line Speed – 82’/min
• Maximum Chain Size – 1/4″
• Maximum Rope Size – 1/2″
• Power – 12 V
• Maximum Boat Length – 35′
• Mounting Position – Vertical
• Weight – 14lbs

In the Box:

• Windlass
• Switch
• Dual direction contactor/solenoid
• Circuit breaker
• Instruction manual

*Sold as an Individual

Owner Manual

Chain - Diameter (Inches) = .25 | Freefall = Yes | Rope Diameter (Inches) = .5 | Vertical/Horizontal = Vertical
