Description

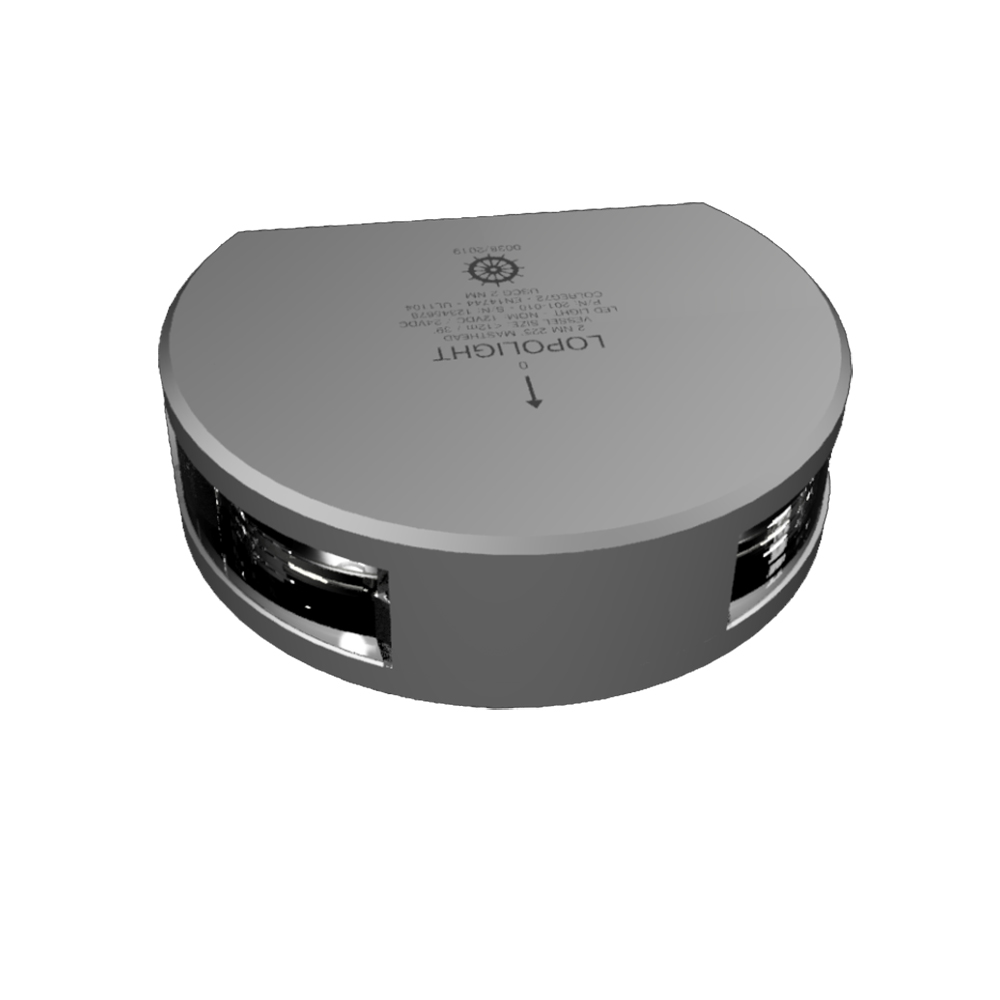

225° Masthead Light – Single – Silver Housing – Vertical Mount

This LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.

The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

The interior is completely filled with a special potting resin making it water- and vibration proof.

Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:

• COLREG72
• EN14744
• IEC 60945
• USCG (UL1104)

Specifications:

• Vessel size: <12m (<39.4’)
• Visibility: >2 nautical miles
• Intensity: >5,4cd
• Power consumption: 2,5 Watt; Current: 0,21A @12 VDC – 0,10A @24 VDC
• Operating voltage: 10 – 32 VDC
• Number of LEDs: 2
• Light colour: White
• Operating temperature: -25°C to +55°C
• IP rating: IP68
• Mounting: Vertical

Housing = Silver | Lens Color = White | Visible Range (Miles) = 2nm | Voltage - Input Range (Volts) = 10-32v | LED = Yes
