Description

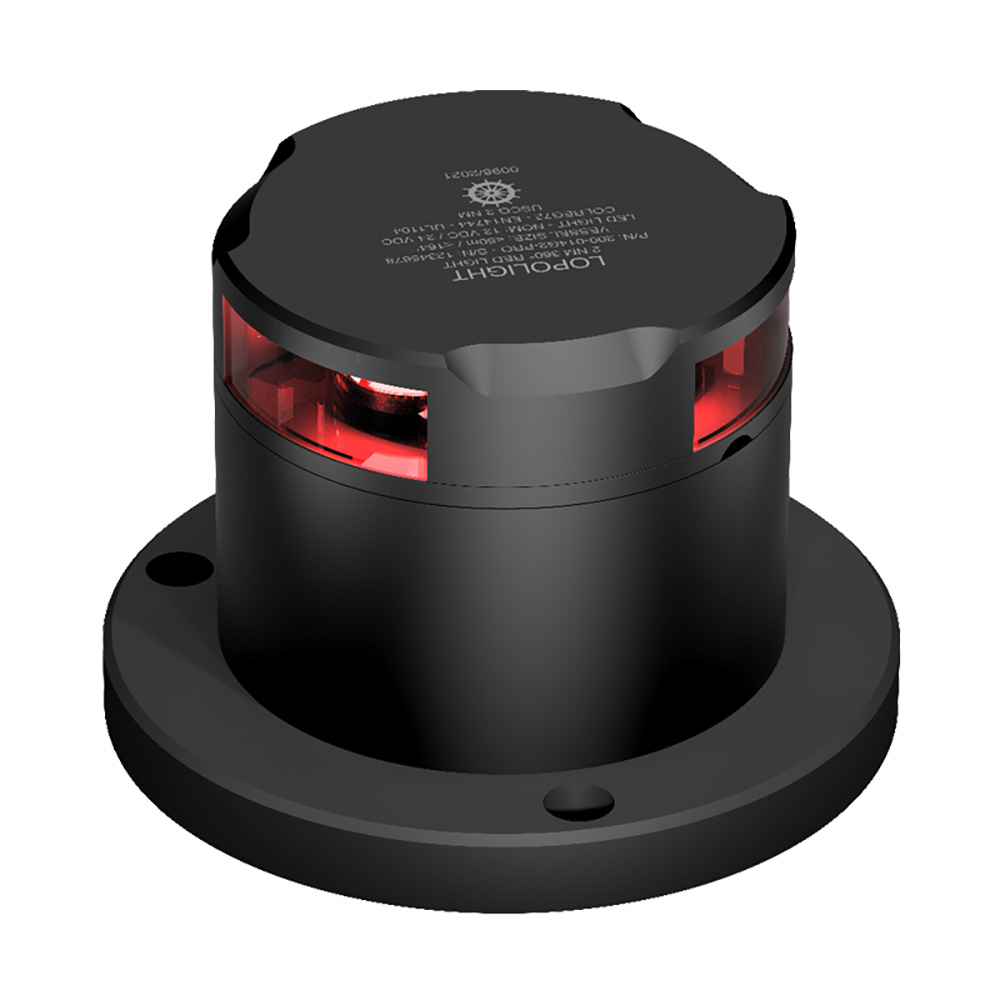

360-Degree Red Nav Light with De-Icing Function – Black Housing

This 360-degree navigation light has a red-light color and black housing while having up to 2 nautical miles of visibility.

Features:

• Built-in de-icing function
• Horizontally mounted on a POM base (IP68)
• Side cable direction
• Included HDPE base plate
• Quality Cable Glands 2 Sizes Are Included: 7-13mm (1/4″-1/2″) cable diameter & 4.5-10mm (5/32″-3/8″) cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438019331
• Min. Feed Wire Gauge: 1.5mm² AWG18
• Light Color: Red
• Intensity: >5.4cd
• Visibility: 2NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: Plug connector
• Current Consumption (mA @ 24VDC): 85
• Current Consumption (mA @ 12VDC): 150
• Weight: 0.81 kg (35.27 oz)
• Dimensions Metric: Ø92,5mm x 75mm
• Dimensions Imperial: Ø3.6 x 2.9
• Operating Temperature: -60 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2,1W (When de-icing 15W @24VDC)
• Vessel Size: Under 12M,12-20M,20-50M

Quick Guide Litreture

Brochure Litreture

Housing = Black | LED = NONE | Lens Color = Red | Visible Range (Miles) = 2NM | Voltage - Input Range (Volts) = 10 - 32
