Description

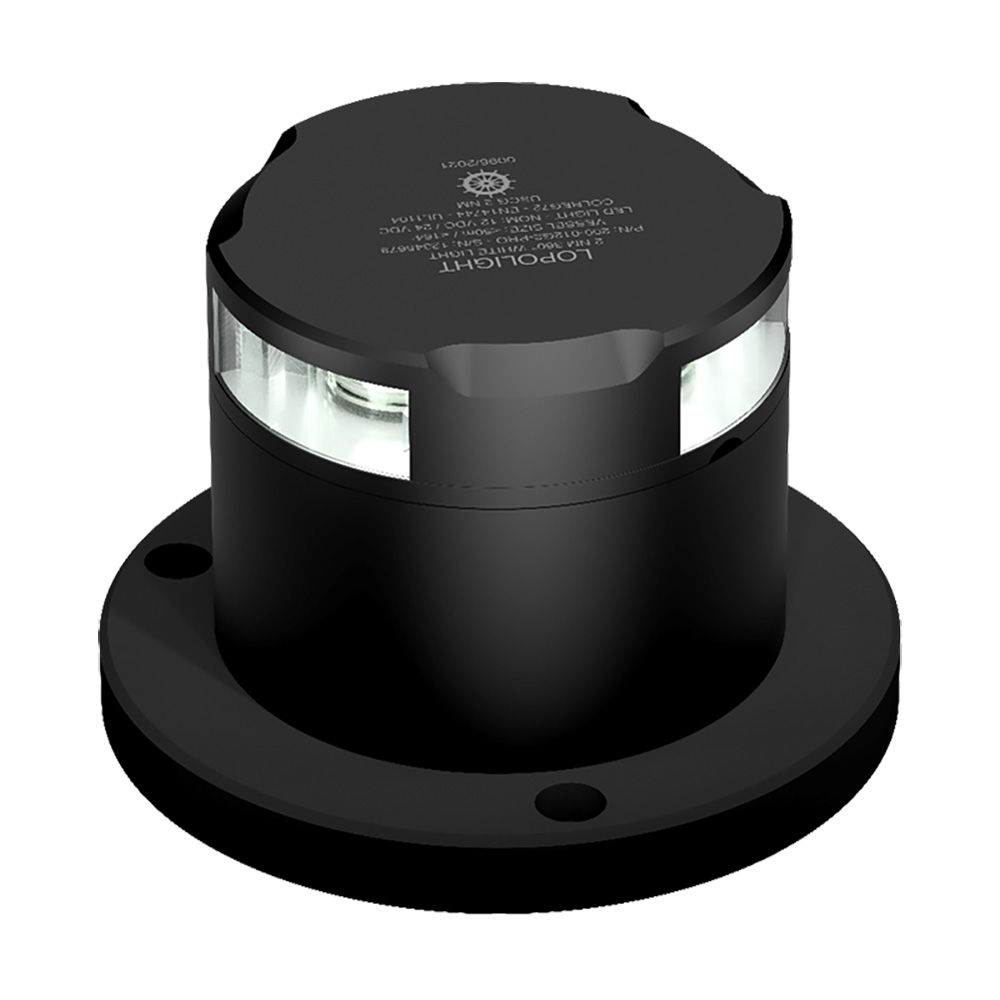

3NM 360-Degree White Ice-Class Port Light
This 360-degree ice-class light has a visibility of up to 3NM, and the de-icing function is automatic and controlled by the sensor in the light.
Includes Three Cable Glands:
- 9-17mm (3/8-11/16 in.) cable diameter
- 7-13mm (1/4-1/2 in.) cable diameter
- 4.5-10mm (5/32-3/8 in.) cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438012240
- Light Color: White
- Intensity: >15cd
- IP rating: IP68
- Connection: Plug connector
- Visibility: 3NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Current Consumption (mA @ 12VDC): 270
- Current Consumption (mA @ 24VDC): 176
- Dimensions Metric: Ø92,5mm x 89,5mm
- Dimensions Imperial: Ø3.6″ x 3.5″
- Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
- Operating Temperature: -60°C to 55°C
- Operating Voltage: 20-32VDC
- Power Draw (W): 4W (normal), 21W (de-icing mode, light on)
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 1.5mm2 AWG18
- Weight (kg): 1.14 Kg
- Weight (oz): 40.21 Oz
Housing = Black | LED = NONE | Lens Color = White | Visible Range (Miles) = 3NM | Voltage - Input Range (Volts) = 20-32
