Description

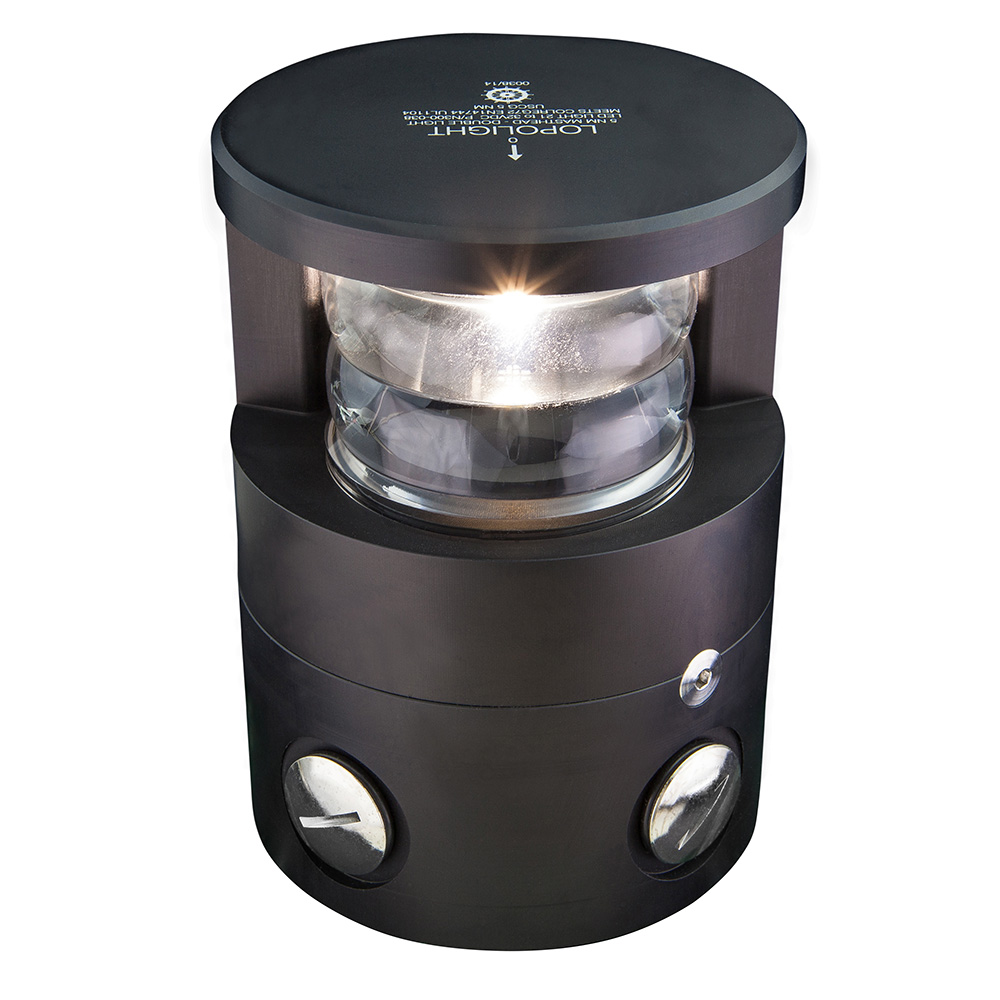

6NM Double Stacked Ice-Class Masthead Light
This double-stacked masthead light is dimmable, monitored, and controllable. Also, this light has a two-lead connection for power/control and ice-class heaters built-in. The de-icing function is automatic and controlled by the sensor in the light.
Includes Three Cable Glands:
- 9-17mm (3/8-11/16 in.) cable diameter
- 7-13mm (1/4-1/2 in.) cable diameter
- 4.5-10mm (5/32-3/8 in.) cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438006669
- Light Color: White
- Intensity: >94cd
- IP rating: IP68
- Connection: Plug connector
- Visibility: 6NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Current Consumption (mA @ 12VDC): 0
- Current Consumption (mA @ 24VDC): 290
- Dimensions Metric: Ø92,5mm x 143mm
- Dimensions Imperial: Ø3.6″ x 5.6″
- Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
- Operating Temperature: -60°C to 55°C
- Operating Voltage: 20-32VDC
- Power Draw (W): 7W (normal), 24W (de-icing mode, light on)
- Vessel Size: Over 50m
- Min. Feed Wire Gauge: 1.5mm2 AWG18
- Weight (kg): 1.75 Kg
- Weight (oz): 61.72 Oz
Housing = NONE | LED = NONE | Lens Color = NONE | Visible Range (Miles) = 6NM | Voltage - Input Range (Volts) = 20-32
