Description

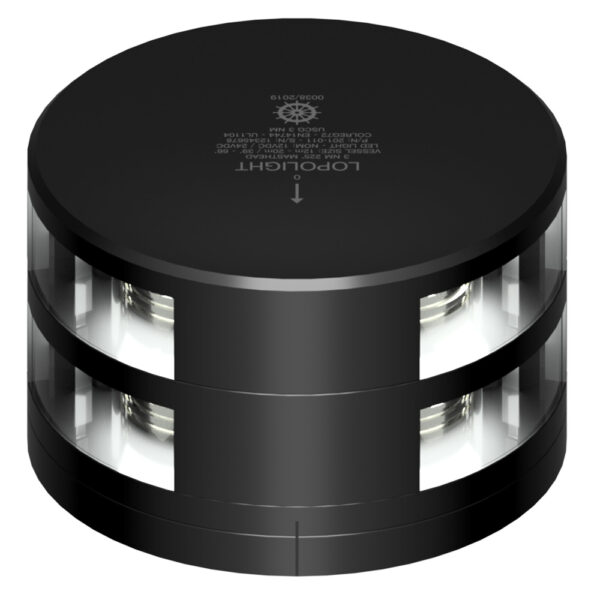

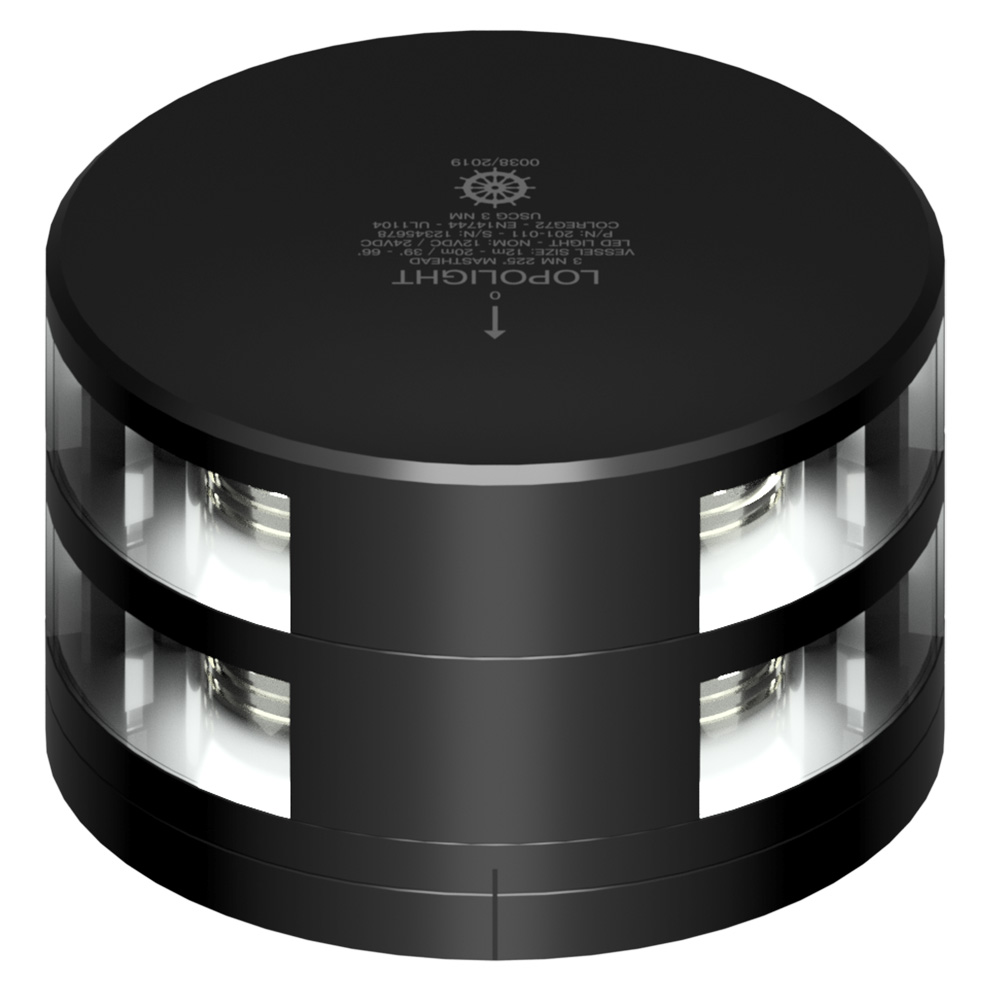

Double Stacked Masthead Light – 3NM – Black Housing with FB Base

This black masthead light is double stacked, horizontally mounted, and has a three-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043435
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: White
• Visibility: 3NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 127
• Current Consumption (mA @ 12VDC): 232
• Dimensions Metric: Ø92.5mm x 58mm
• Dimensions Imperial: Ø3.6″ x 2.3″
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 3
• Vessel Size: 12-20 meters

Quick Guide Litreture

Brochure Litreture

Housing = Black | LED = NONE | Lens Color = NONE | Visible Range (Miles) = 3NM | Voltage - Input Range (Volts) = 10 - 32
