Lopolight Masthead/360-Degree Light – 3NM – Silver Housing w/FB Base

103311

$903.22 $767.73

(MRP Pricing)

0 in stock
Qty :

Description

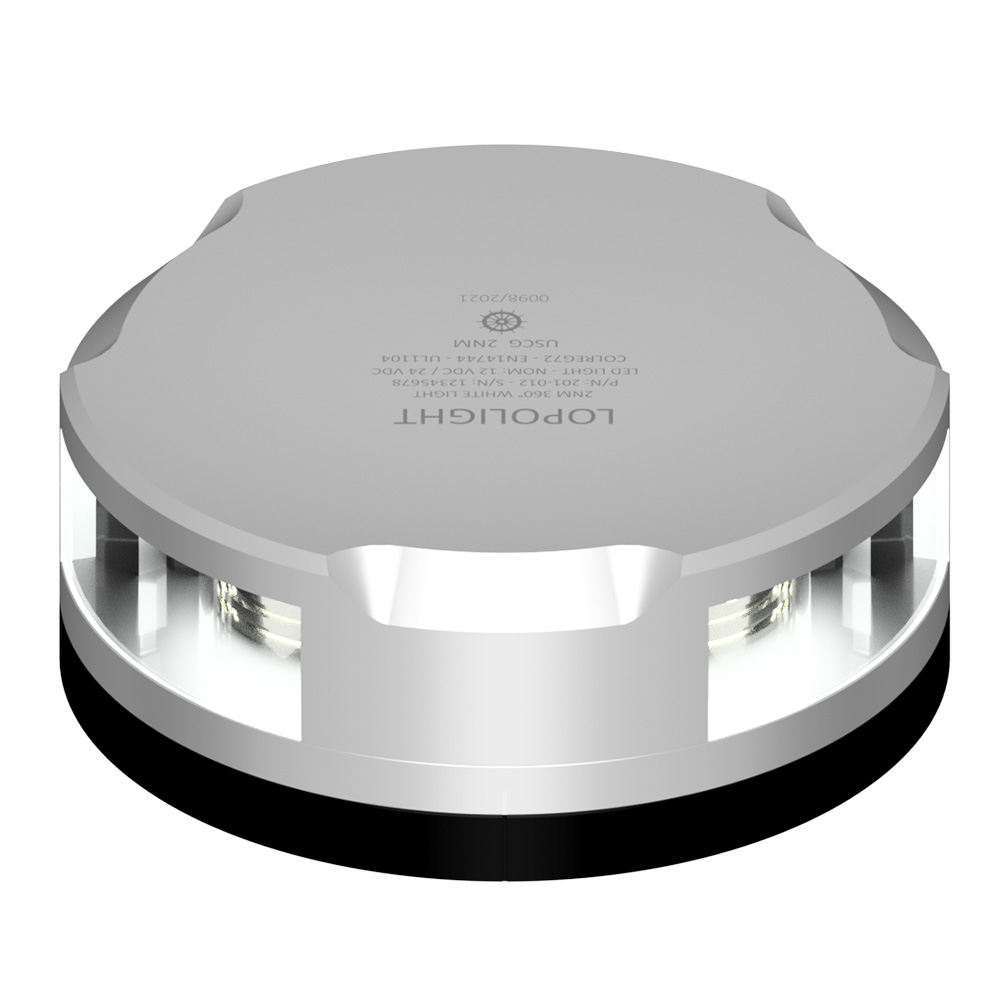

Masthead/360-Degree Light – 3NM – Silver Housing with FB Base

This white 360-degree/masthead light has a silver housing, is horizontally mounted, and has a three-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

  • Silver anodized aluminum housing
  • 0.75m cable is included

Specifications:

  • Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
  • Mounting: Horizontal
  • EAN: 5704438043534
  • Min. Feed Wire Gauge: 0.5mm2 AWG22
  • Light Color: White
  • Visibility: 3NM
  • Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
  • Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
  • IP rating: IP68
  • Connection: 0.75m cable
  • Current Consumption (mA @ 24VDC): 148
  • Current Consumption (mA @ 12VDC): 300
  • Dimensions Metric: Ø92.5mm x 36mm
  • Dimensions Imperial: Ø3.6″ x 1.4″
  • Operating Temperature: -25 degrees C to 55 degrees C
  • Operating Voltage: 10-32VDC
  • Power Draw (W): 3.6
  • Vessel Size: Under 12-20 meters

Quick Guide Litreture

Brochure Litreture

Housing = Silver | LED = NONE | Lens Color = NONE | Visible Range (Miles) = 3NM | Voltage - Input Range (Volts) = 10 - 32

Additional information

Model Number 201-021-FB
