Description

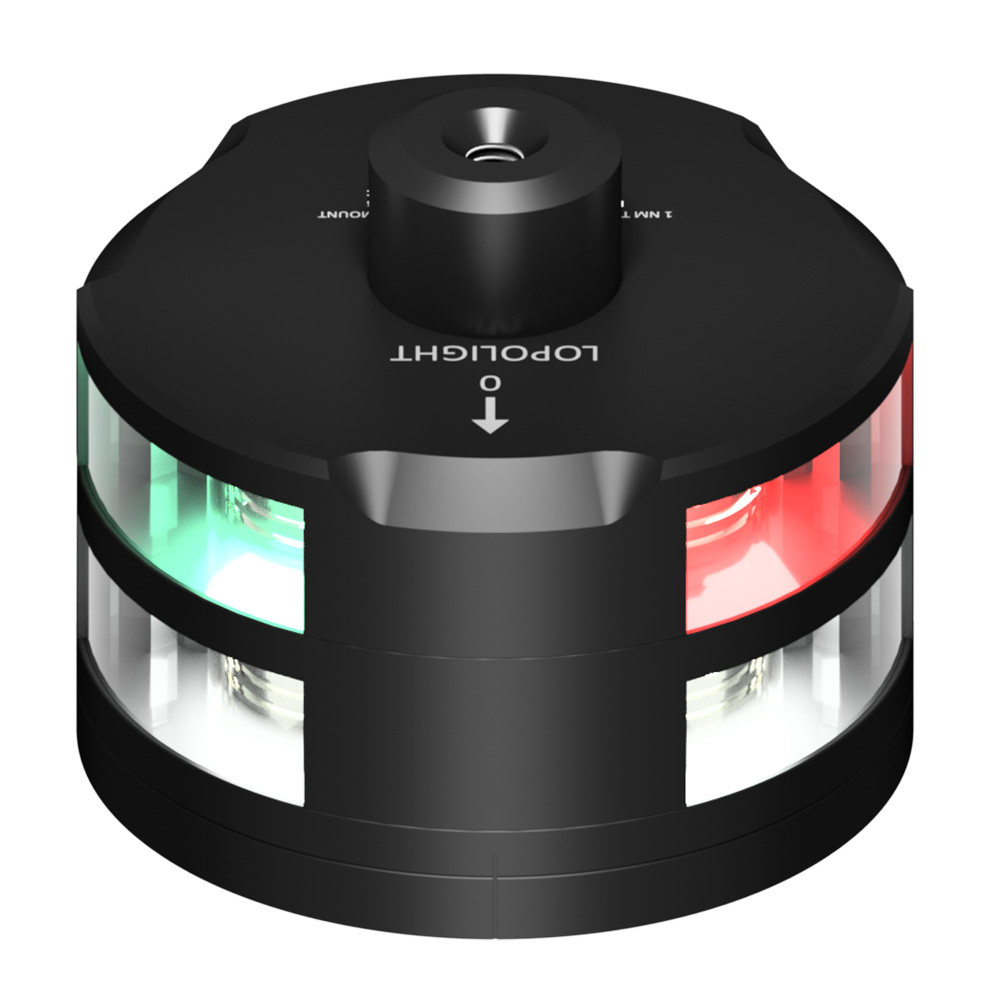

Tri-Color Anchor Light with Windex Mount – 1NM – Black Housing with FB Base
This black tri-color anchor light has a windex mount, is horizontally mounted, and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Black anodized aluminum housing
- 0.75m cable is included
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438042728
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: Red, green, and white
- Visibility: 1NM
- Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: 0.75m cable
- Current Consumption (mA @ 24VDC): 81
- Current Consumption (mA @ 12VDC): 150
- Dimensions Metric: Ø92.5mm x 86mm
- Dimensions Imperial: Ø3.6″ x 3.3″
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 2.6
- Vessel Size: Under 12 meters
Housing = Black | LED = NONE | Lens Color = White/Red/Green | Visible Range (Miles) = 1NM | Voltage - Input Range (Volts) = 10 - 32
