Description

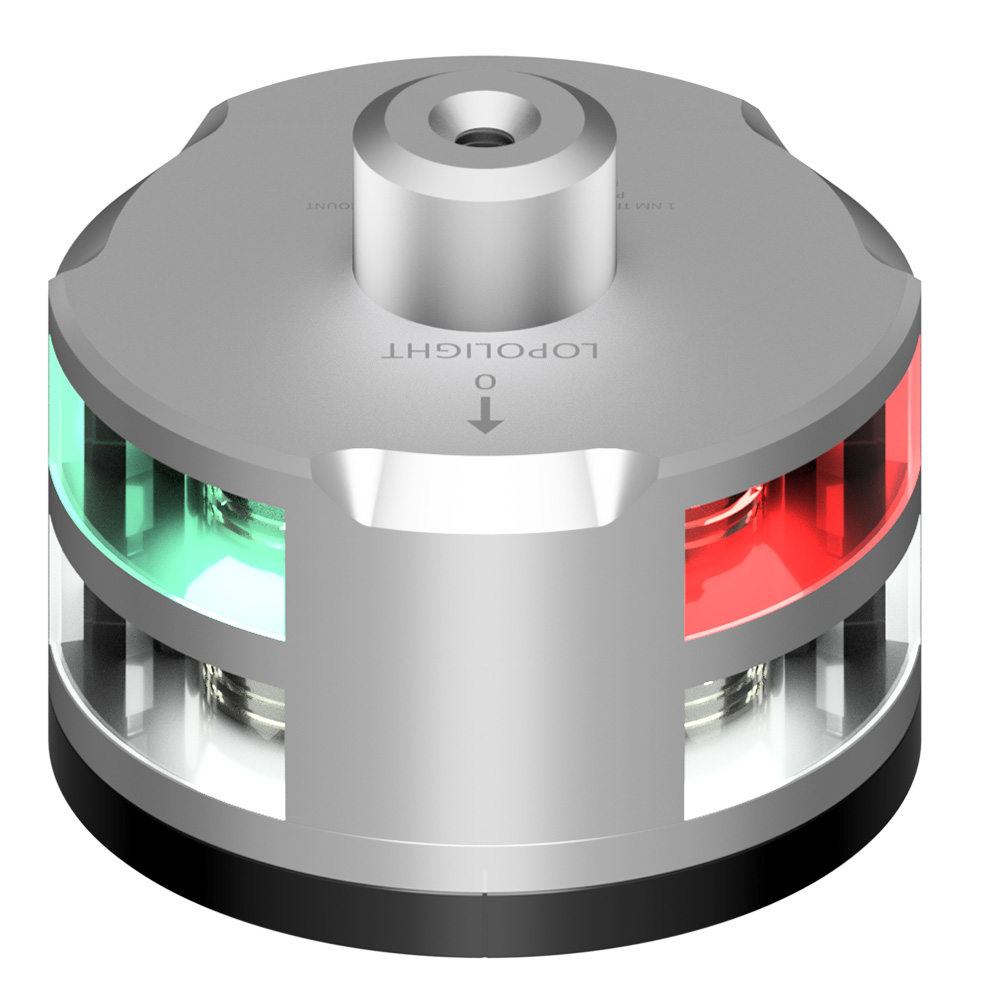

Tri-Color Anchor Light with Windex Mount – 1NM – Silver Housing with FB Base

This silver tri-color anchor light has a windex mount, is horizontally mounted, and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042704
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green, and white
• Visibility: 1NM
• Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, and Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 81
• Current Consumption (mA @ 12VDC): 150
• Dimensions Metric: Ø92.5mm x 86mm
• Dimensions Imperial: Ø3.6″ x 3.3″
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.6
• Vessel Size: Under 12 meters

Quick Guide Litreture

Brochure Litreture

Housing = Silver | LED = NONE | Lens Color = White/Red/Green | Visible Range (Miles) = 1NM | Voltage - Input Range (Volts) = 10 - 32
