Description

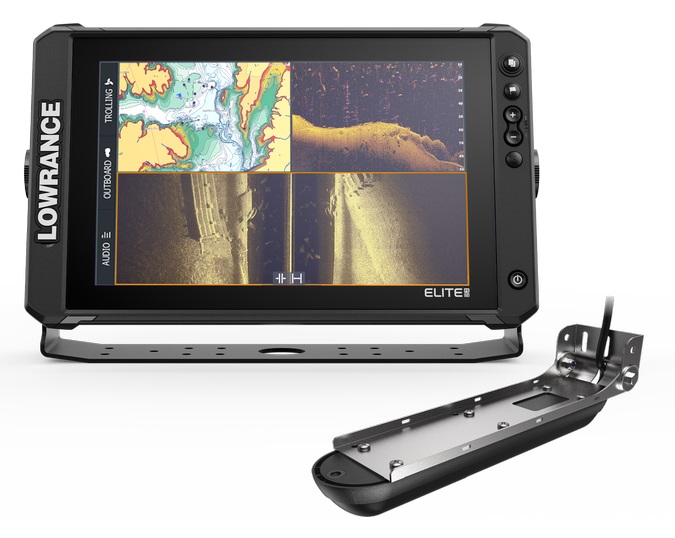

Lowrance EliteTM FS 12 with Active Imaging 3-in-1 Transducer (US/CAN)
Model: 000-16432-001
- ActiveTargetTM 2 Live Sonar ready
- Active Imaging 3-in-1 ready
- Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
- FishRevealTM
- Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics(R) and more
The EliteTM Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTargetTM 2 live sonar, Active ImagingTM and Active ImagingTM HD* and preloaded C-MAP(R) Discover Onboard charts – to help you make the most of your time on the water. *Active Imaging HD requires S3100 Module
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTargetTM 2 live sonar and extreme high-resolution Active ImagingTM and Active Imaging HD* with Lowrance CHIRP sonar, SideScan and DownScan ImagingTM with FishRevealTM to preloaded C-MAP(R) Discover Onboard Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTargetTM 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Note: No splitscreen options in 10 & 12 Models
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active ImagingTM and Active ImagingTM HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan ImagingTM with FishRevealTM. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Discover Onboard inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada. *Active Imaging HD requires S3100 Module
Specifications
| 1280X800 | |
| Viewing angle in degrees | 80 deg top/bottom, 80 deg left/right |
| Brightness | > 1200 nits |
| Touch screen | Multi-touch |
| PHYSICAL | |
| Weight | 2.3 Kg (5.1 lbs) |
| Compass Safe Distance | 2.1 ft (65 cm) |
| ENVIRONMENTAL | |
| Operating temperatature range | -15 degC to +55 degC (5 degF to 131 degF) |
| Storage Temperature | -20 degC to +60 degC (4 degF to 140 degF) |
| Waterproof Rating | IPX6 and IPX7 |
| ELECTRICAL | |
| Supply Voltage | 12 V DC (10 – 17 V DC min – max) |
| Recommended Fuse Rating | 3 Amps |
| Power Consumption Maximum | 34.5 W (2.5 A at 13.8 V DC) |
| INTERFACE/CONNECTIVITY | |
| NMEA 2000 | 1 port (Micro-C connector) |
| Data Card Reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth | 4.0 with support for Bluetooth(R) Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
What’s in the Box:
- Elite FS 12 Display
- ActiveImagingTM 3-IN-1 Transducer w/ 7.6m (25ft) cable
- EliteTM FS 12 Suncover
- HDS-12 LIVE, PRO / Elite FS-12 Bracket and Knobs
- Lowrance Power Cable
- Fuse and Fuse Holder
- Corner Clip ELITE-7, 9, 10, and 12 FS
