Description

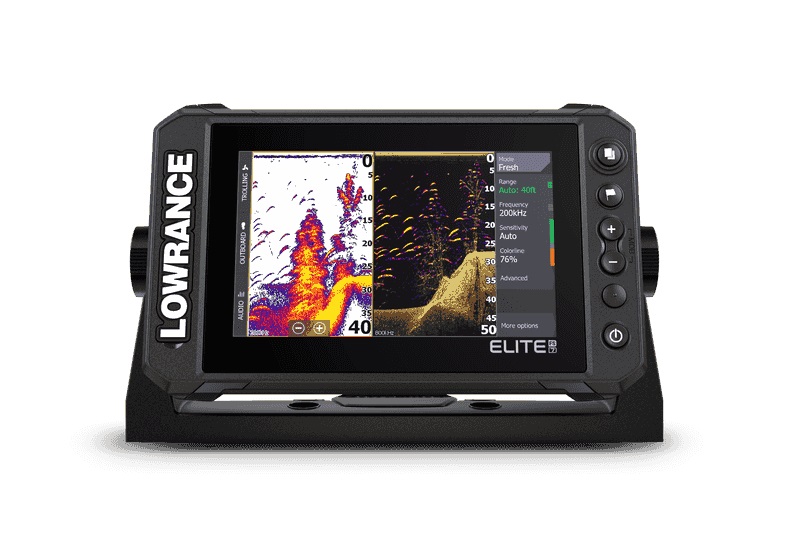

Lowrance Elite FS 7 Display with C-Map Contour+
Model: 000-15703-001
- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTargetTM and Active ImagingTM 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER,APAC)
- NMEA 2000(R): Support and control NMEA 2000(R) devices
- Halo Radar: Drive Lowrance radar domes directly
- Total Control: Full touchscreen control of Power Pole(R) anchors and Ghost(R) Trolling Motor
The new EliteTM Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTargetTM live sonar, Active ImagingTM, FishRevealTM and preloaded C-MAP(R) ContourTM + charts
Specifications
| -15 degC to +55 degC (5 degF to 131 degF) | |
| Storage temperature | -20 degC to +60 degC (4 degF to 140 degF) |
| Waterproof rating | IPX6 and IPX7 |
| Electrical | |
| Supply voltage | 12 V DC (10 – 17 V DC min – max) |
| Recommended fuse rating | 3 A |
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) |
| Display | |
| Resolution | 800 x 480 pixels |
| Viewing angles in degrees | 50 deg top, 60 deg bottom, 70 deg left and right |
| Brightness | > 1200 nits |
| Touch screen | Multitouch |
| Physical | |
| Weight (display only) | 0.9 kg (1.9 lbs.) |
| Compass Safe Distance | 0.5 m (1.6 ft.) |
| Interface/Connectivity | |
| NMEA 2000(R) | 1 port (Micro-C connector) |
| Data card reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth(R) | 4.0 with support for Bluetooth(R) Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
What’s in the Box:
- Elite FS 7 Display
- Suncover
- Mounting bracket and knobs
- Power cable
- Fuse and Fuse holder
