Lowrance Outboard Pilot Cable Steered

LOW00011749001
Lowrance

$1449.00

(MRP Pricing)

4 in stock
Qty :
,

Description

Lowrance Outboard Pilot Cable-Steer Pack

Available for HDS Gen2 Keypad units only (*available Q2 for HDS Gen2 Touch and HDS Gen3)

Model: 000-11749-001
UPC: 9420024134320

  • Steer your outboard motor to a heading, waypoint, route or cursor, with control from your HDS Gen2 display.
  • New Lowrance SmartSteer™ interface provides control of both your cable-steer outboard motor, as well as the MotorGuide Xi5 Pinpoint electric-steer trolling motor.
  • "One-touch" route creation from saved trails.
  • Repeat your path with automatic turn patterns.
  • Recommended for single-outboard setups, on boats that are 30 feet and less, in length.
  • VRF (Virtual Rudder Feedback) — simplifies pilot installation — eliminating the need for a rudder position sensor.
  • Easy setup — straightforward guide steps you through first-time install.
  • Easy-to-install, plug-and-socket connection — with no complex terminal wiring.
  • Supported by Lowrance Advantage Service program
  • Lowrance Outboard Pilot Cable-Steer Pack replaces the manual helm-drive unit.
  • Morse 290, Morse 304411 and Teleflex SSC52 cable compatibility
  • Helm-1 is only compatible with the NAC-1.Helm-1 includes variable-voltage feedback interface

ALL NEW autopilot pack for Lowrance High Definition System (HDS) displays, providing automatic steering for cable-steer outboard motors. An extra pair of hands when you need it, the Outboard Pilot, featuring Lowrance SmartSteer™ control from your HDS Gen2, will steer to a heading, waypoint or route.

Everything you need in one box to fit an autopilot to your cable-steer outboard motor, the Outboard Pilot lets you focus on fishing activity while keeping the boat on course. When connected to a Lowrance HDS Gen2, the Outboard Pilot can steer to a waypoint or along a route, select a turn pattern or simply hold a constant heading. The Lowrance SmartSteer™ user interface allows you to easily switch between electric-steer, trolling-motor control and outboard motor control directly from your HDS display. And, with your HDS display, you can easily convert trails to routes — so you can retrace a previous track and get your boat back to the dock from your fishing area.

The Lowrance Outboard Pilot is recommended for single outboard set-ups, on boats that are 30 feet and less, in length.

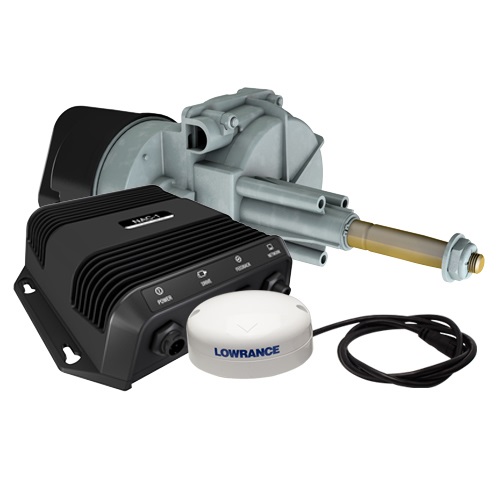

What’s in the Box:

  • NAC-1 Autopilot Computer 000-11769-001 – The brains behind your Lowrance Outboard Pilot system. It contains the steering computer and electronics for the drive unit motor
  • Helm-1 -1 Cable-steer helm drive unit 000-11771-001
  • Point-1AP Heading and GPS Sensor – Provides extremely accurate and rapid boat position update, along with heading for accurate boat direction at any speed
  • Auto/Standby Button – Mounts anywhere on dash and changes Autopilot from STBY to AUTO mode with one press.

Additional information

Weight 15.00 lbs
Model Number 000-11749-001
UPC 9420024134320
