Description

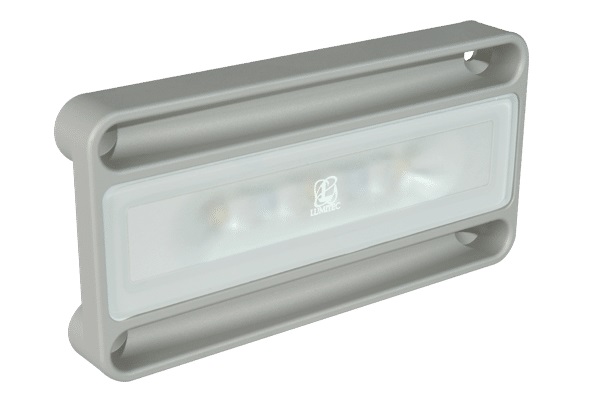

Lumitec Nevis2 Engine Room
White/Red LEDLight
Model: 101148
With more than 1,000 integrating sphere tested lumens, the Nevis2 douses hard to light areas with a 180-degree spread of bright even light. The Nevis2 is the world’s FIRST two-color mechanical space and compartment light with 30% more usable light than our successful original Nevis line. Available in white/red or white/blue, certified as ignition protected. Completely sealed and compatible with most PWM LED dimmers.
Specifications
| Lumens (White) | 1000 |
| Voltage | 10-30vDC |
| 12v DC Amps | 1.3A |
| 24v DC Amps | 600mA |
| Rated Watts | 16 |
| CCT | 5000 |
| CRI | 70+ |
| Op. Temp F/C | -31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) | Yes |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Color Match Commitment (CM) | Yes |
| Mounting Hole Diameter | 5/32″ |
| Height | 2.5in (6.35cm) |
| Width | 5in (12.7cm) |
| Depth | 0.63in (1.60cm) |
| Diameter | N/A |
