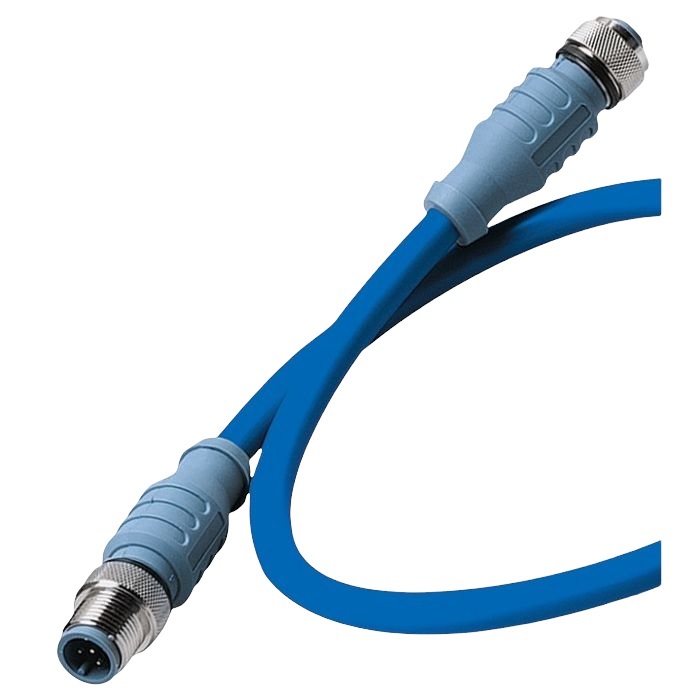

Maretron Blue Mid Cable 0.5M Male To Female Connector

MARDMDB1DF005
Maretron

$27.10 $22.76

11 in stock
Qty :

Description

Maretron Blue Mid 0.5 Meter Cable

Model: DM-DB1-DF-00.5
UPC: 873804001890

  • Rugged, IP68 rated connectors for continued connection integrity in marine environments
  • Various cable lengths to match installation requirements
  • Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Specifications

Mechanical
Contact Carrier Mat/Color Thermoplastic PUR/Blue
Molded Body Mat/Color Thermoplastic PUR/Blue
Contact Mat/Plating Brass/Gold
Coupling Nut Mat/Plating Brass/Nickel
Connector Outside Diameter 0.59 in
Electrical
Current rating 4.0 Amps
Voltage rating1 250v
Cable
Outer Jacket Mat/Color PVC/Blue
Conductor Insulation Material PE (data pair), PVC (power pair)
Number of Conductors 2×16 (1.29mm) AWG,
2×20 (0.81mm) AWG,
20 (0.81mm) AWG Drain Wire
Shielding (3 Levels) Foil (Overall), Foil (Power Pair), Foil (Data Pair)
Enviromental
Protection class IEC IP68, NEMA 1,3,4,6P
Temperature rating -40°C to 80°C to (-40°F to 176°F)
Approvals
(Cable) UL PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
(Cable) CSA CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
NMEA NMEA 2000® Approved
IEC IEC 61162-3

Additional information

Weight 1.00 lbs
Model Number DM-DB1-DF-00.5
UPC 873804001890
