Description

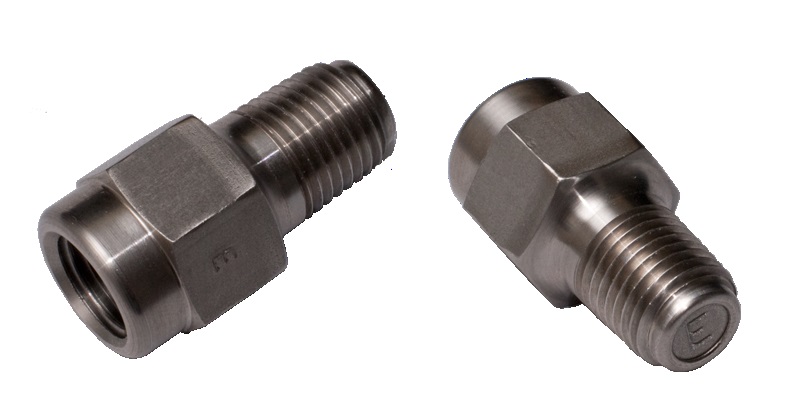

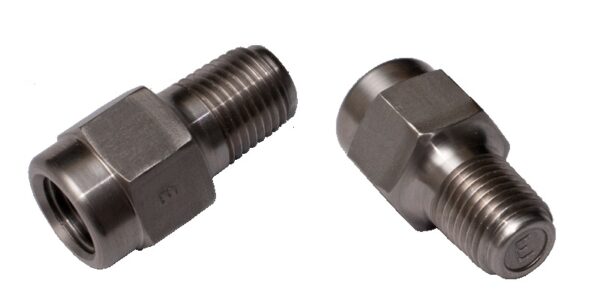

The Maretron PT-SNUB-01 Pressure Snubber is used in combination with the Maretron FPM100 Fluid Pressure Monitor and a pressure transducer FPM100 accessory. The PT-SNUB-01 dampens pressure variations between a pressure source and the pressure transducer, both smoothing the changes due to pressure spikes and surges and protecting the pressure transducer from these changes. Please follow these instructions to install the PT-SNUB-01 Pressure Snubber between a Maretron FPM100 pressure transducer accessory and a tank or pressure source being monitored.
|
Pressure Snubber Specifications Specification |
Value |
|
Housing Material |
303 Stainless Steel |
|
Filter Disc |
316 Stainless Steel |
|
Max Pressure Rating |
15,000 PSI (1,034 bar) |
|
Max Pore Opening |
0.0025" |
|
Flow at 1 PSI (69 mbar) Differential Pressure |
3.0 ft3/hr (0.085m/hr) |
