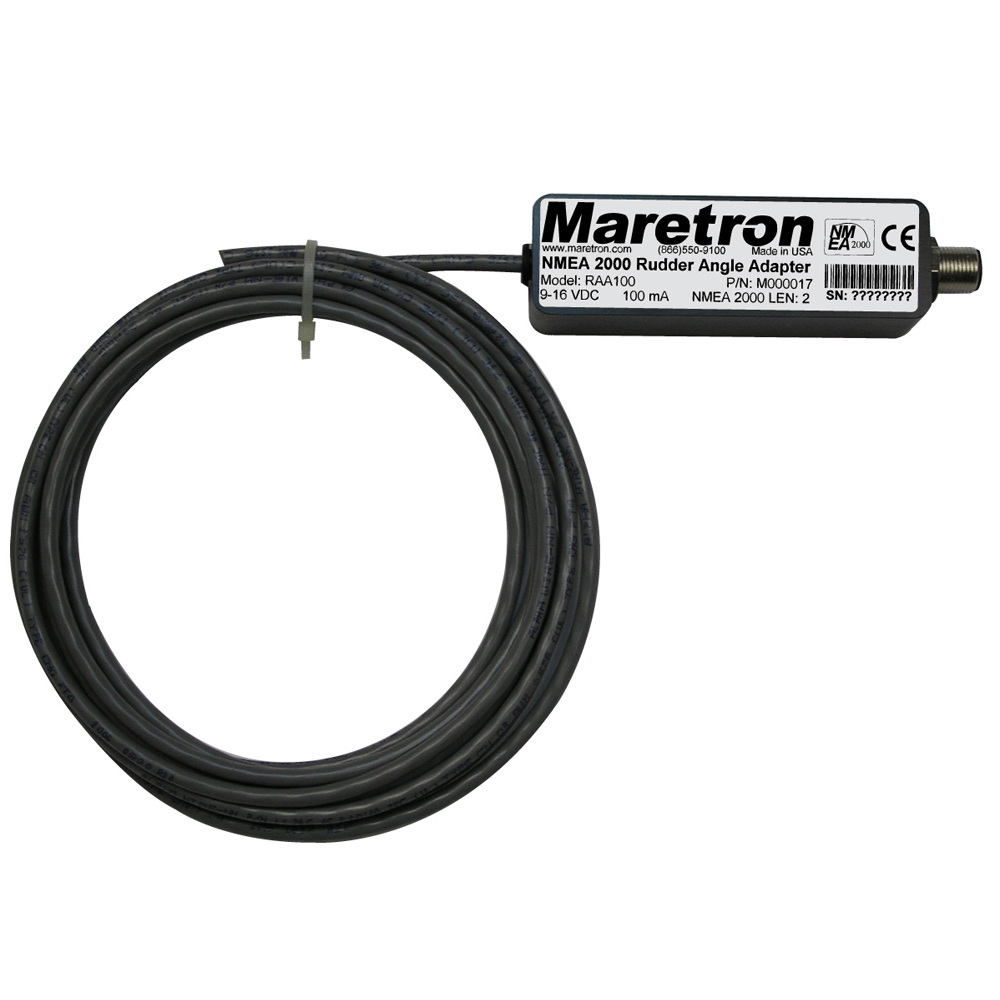

Maretron RAA100 Rudder Angle Adapter

31745
Maretron

$309.00 $259.56

0 in stock
Qty :

Description

RAA100 NMEA 2000®Rudder Angle Adapter

The RAA100 is used to adapt commercially available resistive rudder angle senders to the NMEA 2000® network. This allows you to observe rudder angle anywhere on the vessel where there is an NMEA 2000® compatible display such as the Maretron DSM200.

The RAA100 is compatible with both the American standard (240-33 ohm) and the European standard (10-180 ohm) resistive senders. In fact, the RAA100 can be calibrated for any resistance between 0 and 300 ohms.

You can also use the RAA100 with existing analog gauges so you don’t have to give up your existing analog gauges to enjoy the advantages of digitally networked information.

Features:

  • Rudder Angle

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guide Litreture

Owner Manual

Brochure Litreture

Cable Length (Feet) = NONE | Data Interface = NONE | Connection Gender = NONE

Additional information

Weight 0.9 lbs
Dimensions 10 × 7 × 2 in
Model Number RAA100-01
UPC 873804000107
