Description

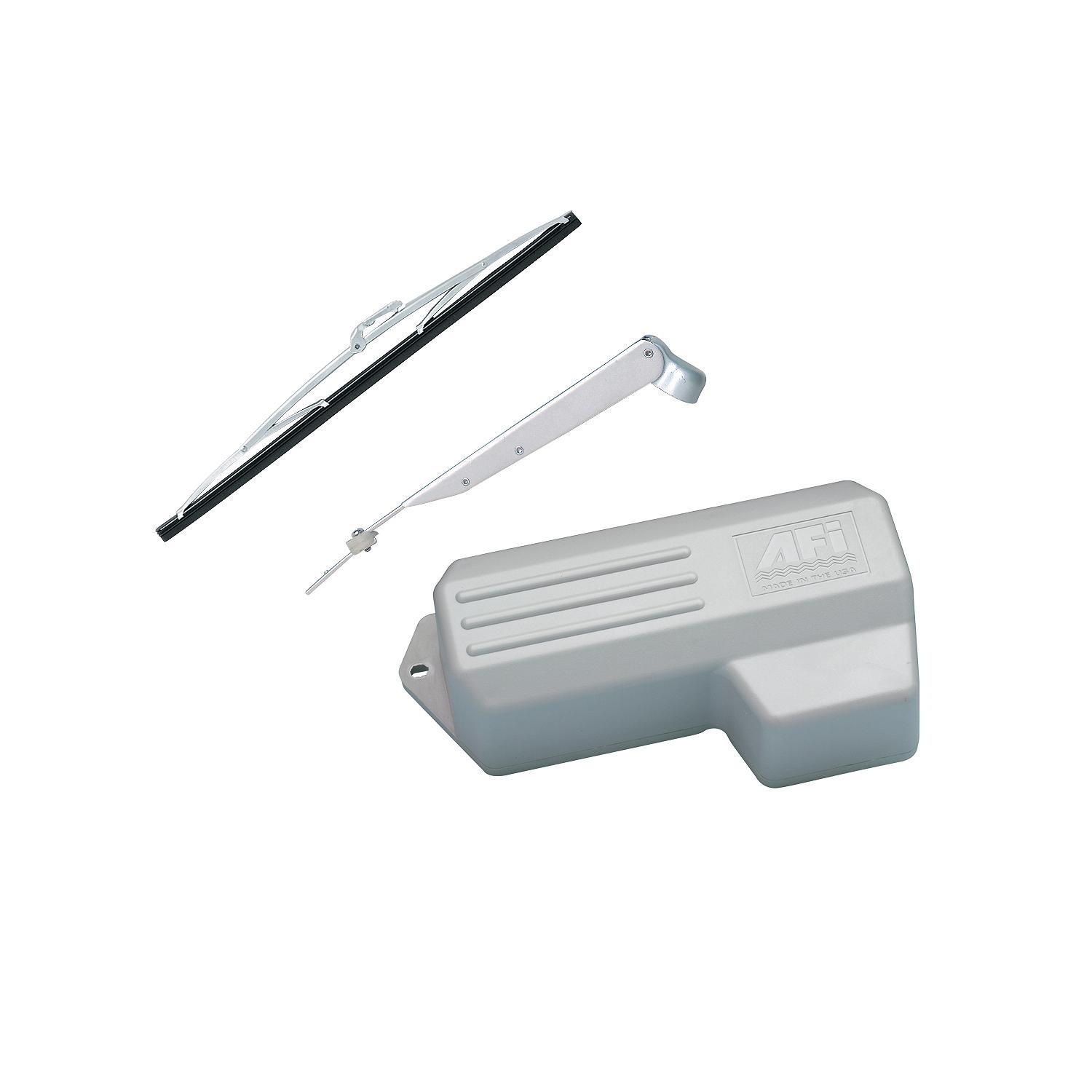

Marinco 1000 Waterproof Wiper Motor – 2.5″ Shaft Kit, 110 Degree Sweep
Model: 37200
- Powers 18″ Deluxe arm and 18″ Deluxe blade combination at sweep sets of 80 degrees or less (not compatible with pantograph arms)
- Powers 16″ Deluxe arm and 16″ Deluxe blade combinations at a sweep set of 110 degrees (not compatible with pantograph arms)
- Factory pre-set sweep of 80 or 110 degrees, adjustable to 50, 65, 80, or 110 degrees
- .625″ diameter shaft (16 mm)
- Fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic
- 12V heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Retail version includes 5A fuse and holder (on/off switch not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two (2) shaft lengths: 1.5″ and 2.5″ (includes .5″ length of knurled arm fitting)
- Measures approximately 6.625″ L x 3.375″ W x 2″ D
- Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8A-10.0A
- No load current: 0.8A-1.2A
Specifications
| Description | 2.5″ Shaft Kit |
| Part # | 37200 |
| Voltage | 12V |
| Sweep | 110 degrees |
| Adjustable Sweep | 50, 65, 80, or 110 degrees |
| Shaft Diameter | .625″ (16 mm) |
| Shaft Length | 2.5″ (includes .5″ length of knurled arm fitting) |
| Dimensions | 6.625″ L x 3.375″ W x 2″ D |
| Weight | 1.75 lbs |
| Stall Torque | 55 in-lbs (63 kgf/cm; 6.2 Nm) |
| Stall Current | 9.8A-10.0A |
| No Load Current | 0.8A-1.2A |
| Housing | UV stabilized, high-temperature, high-impact thermoplastic |
| Warranty | 3 Year |
What’s in the Box:
- 1000 Waterproof Wiper Motor, 2.5″ shaft, 110 degree sweep
- 5A fuse and holder
