Description

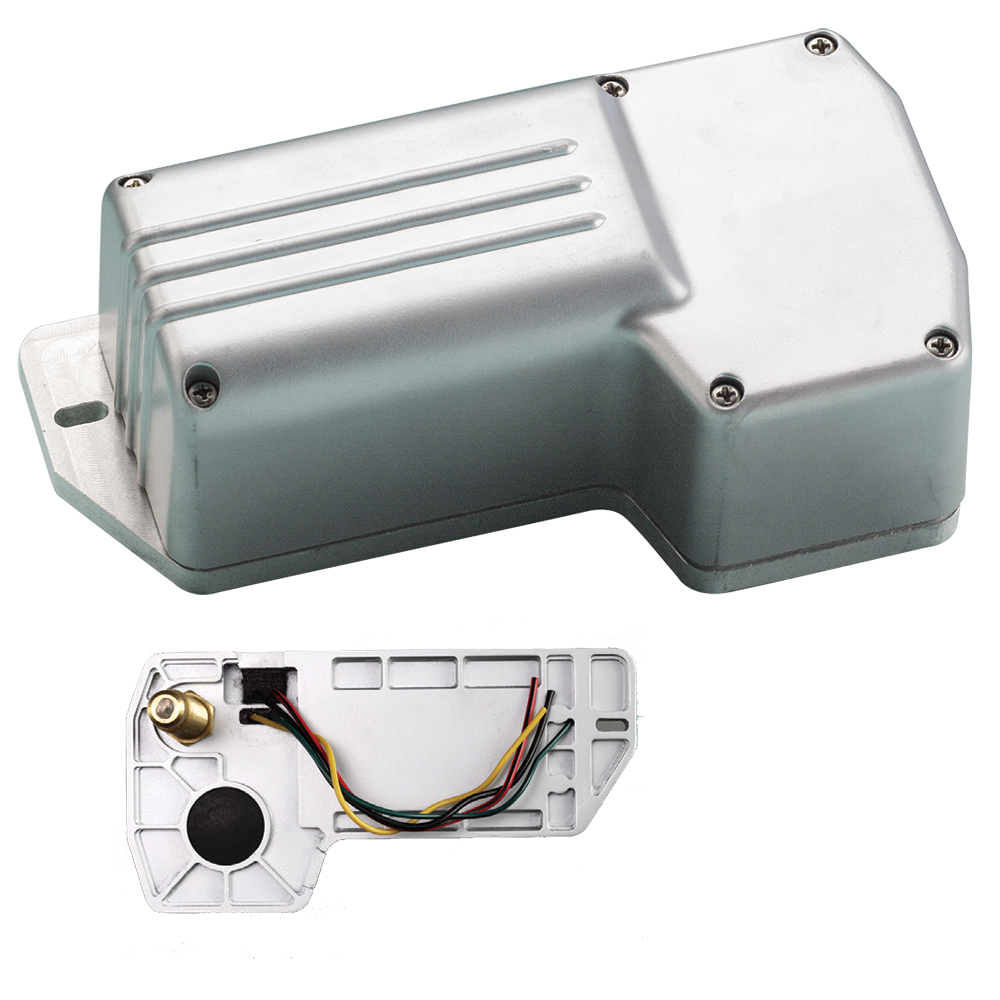

Waterproof Wiper Motor 12V – 2.5″ Shaft – 80° Sweep
The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22″ Deluxe arm and 22″ Deluxe blade combination or a 20″ Premier arm and 20″ Premier blade combination.
Features:
- Available in three shaft lengths: 1.5″, 2.5″ and 3.5″ (includes .5″ length of knurled arm fitting)
- Factory pre-set sweep angles of 80 degrees or 110 degrees, with easy adjustment to 45 degrees or 60 degree
- Chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft
- Two-speed motor
- Sealed 6″ wire leads, 16 AWG
- Adjustable right or left self-parking
- 0.625″ diameter shaft (16 mm)
- Available in 12V and 24V models
- Coast to park
- RF shielded circuitry
- Retail version includes 5 amp fuse and holder (operating switch not included)
- Measures approximately 7.75″ L x 4″ W x 2.75″ D
- Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
- Stall current: 11.5-13.0 amps
- No load current: 0.5-1.2 amps
- Replaces AFI 2000 motor
