Marinco Waterproof Wiper Motor 12V – 2.5″ Shaft – 80° Sweep

89520
Marinco

$349.99 $196.37

5 in stock
Qty :

Description

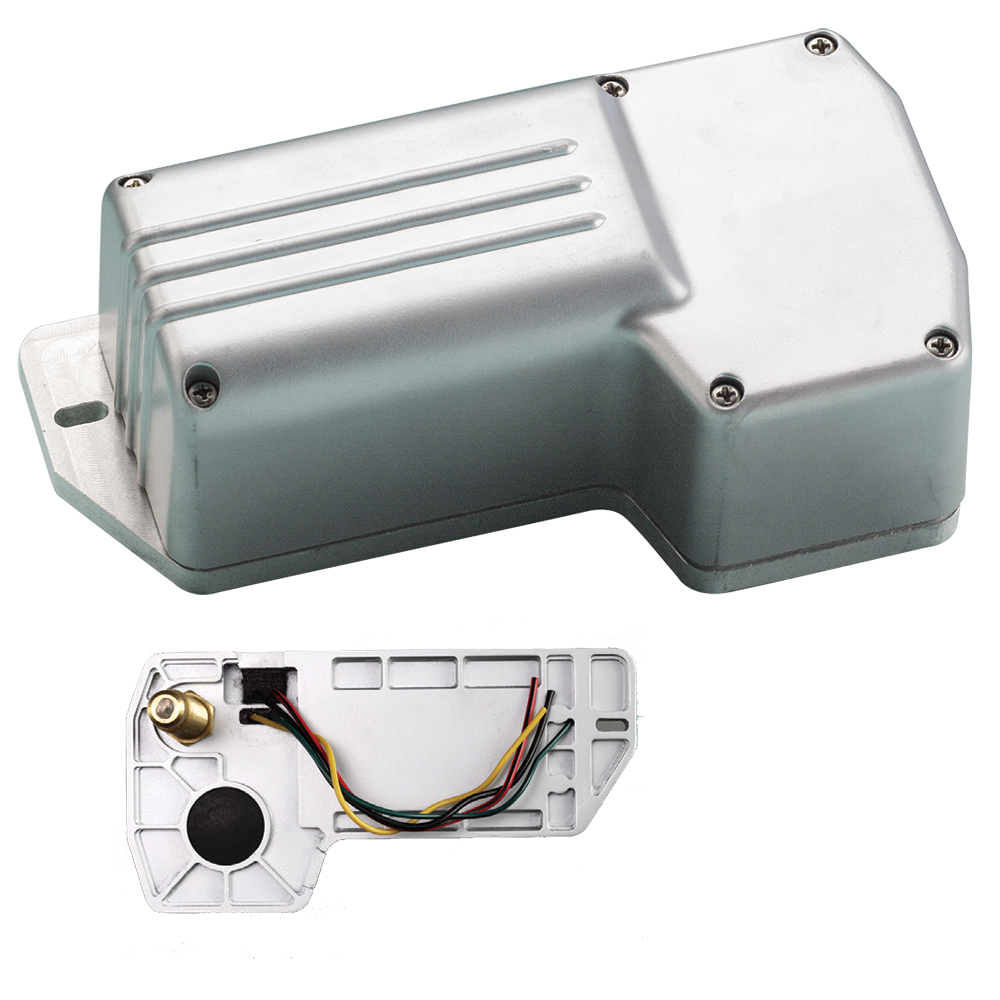

Waterproof Wiper Motor 12V – 2.5″ Shaft – 80° Sweep

The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22″ Deluxe arm and 22″ Deluxe blade combination or a 20″ Premier arm and 20″ Premier blade combination.

Features:

  • Available in three shaft lengths: 1.5″, 2.5″ and 3.5″ (includes .5″ length of knurled arm fitting)
  • Factory pre-set sweep angles of 80 degrees or 110 degrees, with easy adjustment to 45 degrees or 60 degree
  • Chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft
  • Two-speed motor
  • Sealed 6″ wire leads, 16 AWG
  • Adjustable right or left self-parking
  • 0.625″ diameter shaft (16 mm)
  • Available in 12V and 24V models
  • Coast to park
  • RF shielded circuitry
  • Retail version includes 5 amp fuse and holder (operating switch not included)
  • Measures approximately 7.75″ L x 4″ W x 2.75″ D
  • Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
  • Stall current: 11.5-13.0 amps
  • No load current: 0.5-1.2 amps
  • Replaces AFI 2000 motor

Additional information

Weight 2.18 lbs
Dimensions 10 × 7 × 7 in
Model Number 71082
UPC 035028710822
