Description

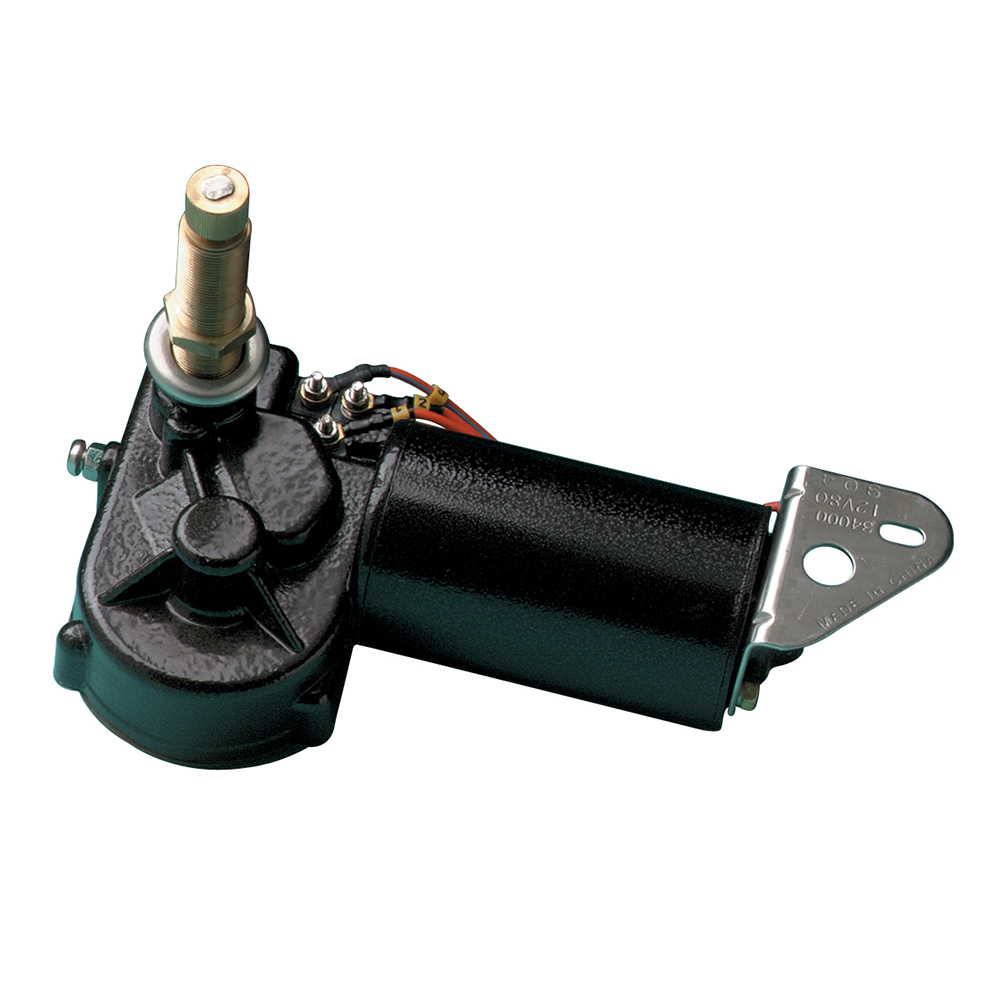

Wiper Motor MRV 12V 2.5″ Shaft – 80°
The MRV Wiper Motor easily powers 22″ x 22″ deluxe arm/blade combinations, or a 20″ x 20″ premier arm/blade combination at sweep sets of 80 degree or less.
Features:
- Factory pre-set sweep of 80 or 110 degrees adjustable to 45, 60, 80 or 110 degrees
- 0.625″ diameter shaft (16 mm)
- Available in 3 shaft lengths: 1.5″, 2.5″ and 3.5″ (includes 0.5″ length of knurled arm fitting)
- Corrosion-resistant casing
- Heavy-duty motor with right angle drive
- Two-speed motor, can be operated as one speed
- Solid brass knurled drive nut with brass and stainless steel drive shaft
- Adjustable right or left self parking, coast to park
- Retail version includes 5 amp fuse and holder
- Stainless steel fasteners and mounting bracket
- Use with three-position switch (not included)
- Compact size – 7.625″ L x 4″ W x 2″ D
- Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
- Stall current: 11.5 to 13.0 amps
- No load current: 0.5 to 1.2 amps
