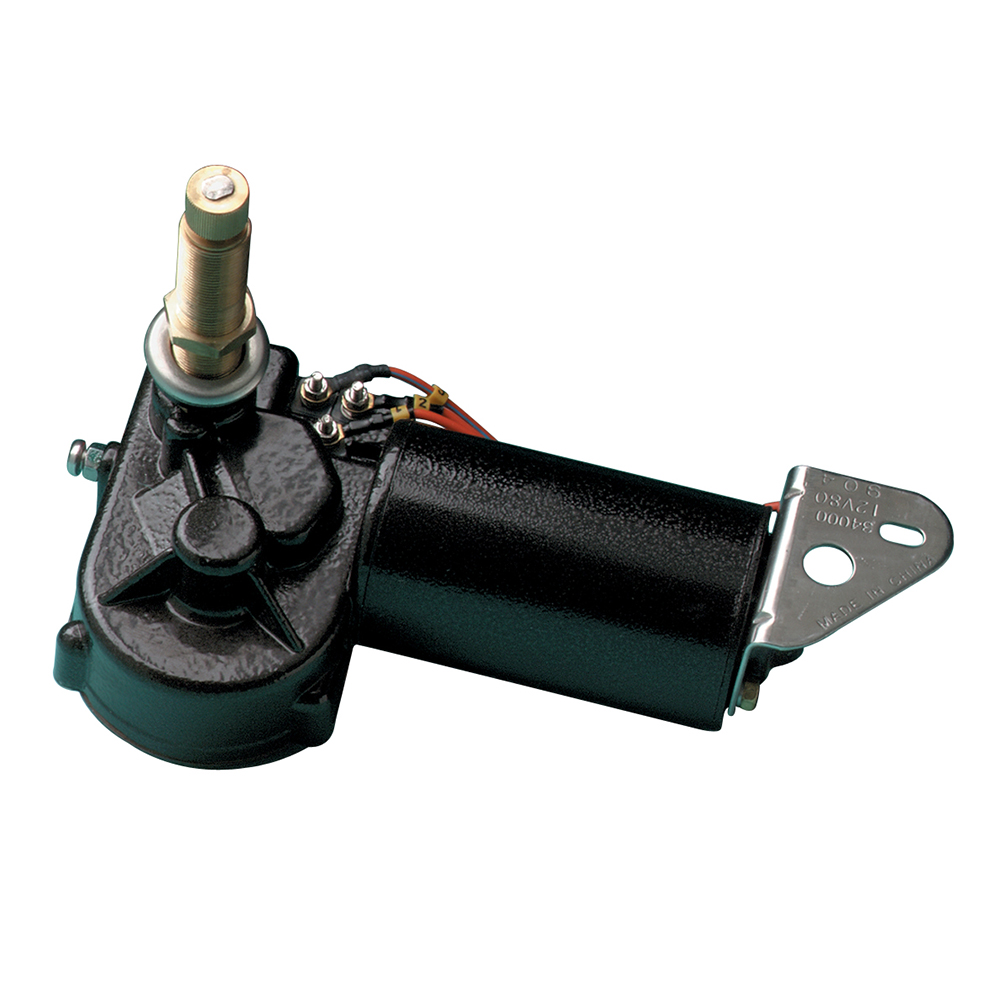

Marinco Wiper Motor, MRV, 12V, 3.5″ Shaft – 80°

76803
Marinco

$276.95 $161.02

0 in stock
Qty :

Description

Wiper Motor, MRV, 12V, 3.5″ Shaft – 80°

The MRV Wiper Motor easily powers 22″ x 22″ deluxe arm/blade combinations, or a 20″ x 20″ premier arm/blade combination at sweep sets of 80 degree or less.

Features:

  • Factory pre-set sweep of 80 degree or 110 degree adjustable to 45 degree, 60 degree, 80 degree or 110 degree
  • 0.625″ diameter shaft (16 mm)
  • Available in 3 shaft lengths: 1.5″, 2.5″ and 3.5″ (includes .5″ length of knurled arm fitting)
  • Corrosion-resistant casing
  • Heavy-duty motor with right angle drive
  • Two-speed motor, can be operated as one speed
  • Solid brass knurled drive nut with brass and stainless steel drive shaft
  • Adjustable right or left self parking, coast to park
  • Retail version includes 5 amp fuse and holder
  • Stainless steel fasteners and mounting bracket
  • Use with three-position switch (not included)
  • Compact size – 7.625″ L x 4″ W x 2″ D
  • Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
  • Stall current: 11.5-13.0 amps
  • No load current: 0.5-1.2 amps

Additional information

Weight 2.75 lbs
Dimensions 7 × 6 × 4 in
Model Number 38005
UPC 035028380056
