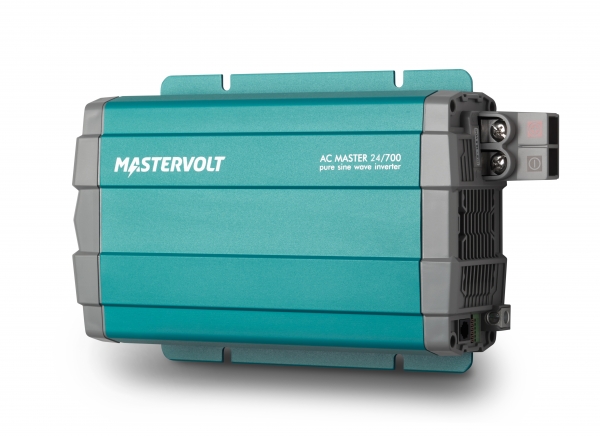

Mastervolt AC Master 24/700 Inverter, 24v Input 120v 700 Watt Output

MAS28520700
Mastervolt

$443.65 $314.92

2 in stock
Qty :

Description

Mastervolt AC Master 24/700 (120 V) Inverter

Model: 28520700

  • Pure sine wave technology protects sensitive equipment.
  • Delivers full output at high peak power under the most demanding conditions.
  • Automatic power saving system for extended runtime.
  • Compact and lightweight design, saving valuable installation time.
  • Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
  • Variable speed fan for quiet operation at low power.
  • Optional remote control for instant switch off of the inverter and all connected equipment
  • Convenient plug connection for all models, 2500/3500 Watt models also hard wired.

These affordable sine wave inverters convert 24V battery voltage into reliable 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Specifications

General specifications
Output voltage 100/110/115/120 V — 50/60 Hz (selectable)
Output waveform true sine
Nominal battery voltage 24 V
Recommended battery capacity ≥ 50 Ah
Continuous power at 25 °C / 77 °F, cos phi 1 700 W
Continuous power at 40 °C / 104 °F, cos phi 1 700 W
Peak load (1 min.) < 810 W
Peak load (1 s) < 1230 W
AC connection North American socket with GFCI
Galvanic isolation Yes
Efficiency 93 %
Display/read-out LED indication: battery voltage, load level, status
Alarms potential free alarm contact
Dimensions, hxwxd 7.9 x 13.0 x 3.3 inch
Weight 5.7 lb
Technical specifications
Technology high frequency, input & output fully isolated
Low battery voltage, switches off at 21 V
Low battery voltage, switches on at 25 V
High battery voltage, switches off at 33 V
High battery voltage, switches on at 29 V
Input current (nominal load) 35 A
No-load power consumption (ON mode) < 0.8 A
No-load power consumption (energy saving mode) < 0.06 A
Minimal DC fuse (slow blow) 50 A
Minimal cable size 16 mm<sup2
Harmonic distortion typical < 5 %
Cos phi all power factors allowed
Temperature range (ambient temp.) -4 °F to 140 °F
Cooling temperature and load controlled fan
Protection degree IP21, horizontal wall mounting
Protections over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible yes, using a MasterBus AC Master Interface

Additional information

Weight 3.00 lbs
Model Number 28520700
UPC 816882021329
