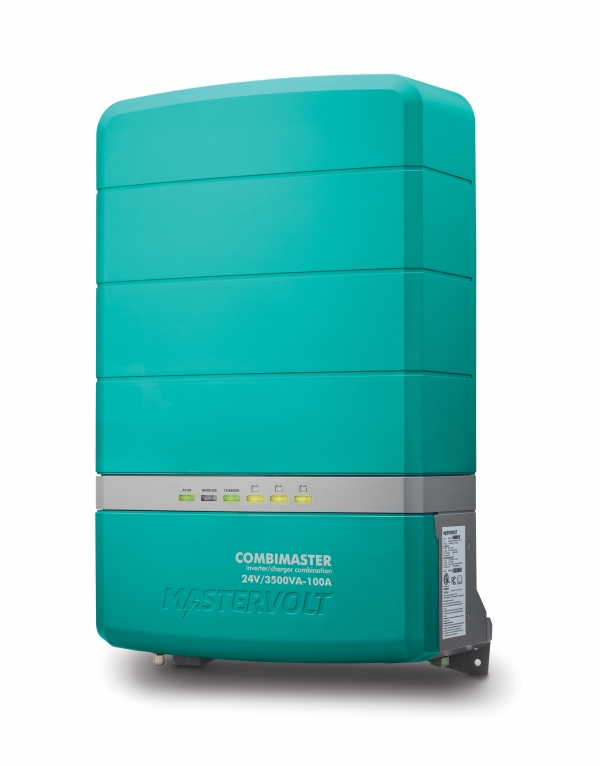

Mastervolt CombiMaster 24/3500 Inverter/Charger 24v Input 120v 3500Watt Output

MAS35523500
Mastervolt

$2956.23 $1878.31

2 in stock
Qty :

Description

Masrtervolt CombiMaster 24/3500-100 (120 V) Combi Inverter Charger

Model: 35523500

  • Most compact and lightweight Combi in its class.
  • Reliable, hum-free and longer operation from your batteries.
  • Starts even the heaviest and most sensitive loads.
  • Intelligent 3-step+ battery charger for faster and safer charging.
  • Automatic switching between mains and inverter mode.
  • Power Assist prevents blown mains fuses.
  • Generator compatible.
  • Integrated CZone, MasterBus and NMEA 2000 communication.
  • Quick installation with heavy duty connections.

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

The CombiMaster 3500/4500/5000 functionality goes beyond stand-alone operation, the design also allows parallel and split phase configurations for larger applications up to 35 kW.

Specifications

Specifications sine wave inverter
Nominal DC voltage 24 V (20,4—32 V )
Output voltage 120 V
Output frequency 60/50 Hz (configurable)
Output waveform true sine
Continuous power at 40 °C / 104 °F, cos phi 1 3500 W
Peak power (30 sec) 5250 W
Surge power (5 sec) 7000 W
Max. efficiency 93 %
Battery no-load power consumption 47 W (on mode) / < 1 mA (off mode)
Energy saving mode consumption 25 W
Synchronise with mains yes
Specifications battery charger
Input voltage range 90—140 V
Max. input current 32 A (adjustable)
Max. charge current at 40 °C / 104 °F 100 A at 28.5 V (configurable)
Battery temperature sensor yes, included
Battery voltage sense automatic compensation
Specifications transfer system
AC input 50 A (switched) max
AC output 85 max A
AC input fuse Yes
Transfer voltage range 90—140V
Transfer frequency range Transfer frequency range
General specifications
Galvanic isolation Yes
Display/read-out LED display
Dimensions, hxwxd 22.4 x 14.1 x 6.7 inch
Weight 37.5 lb
Compliance ABYC A31, UL1236, UL1741, SAEJ1171
Technical specifications
Charge characteristic UoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity 200-1000 Ah (based on gel batteries, may differ for other types)
Temperature range (ambient temp.) -25°C to 60°C, derating above 40°C, shutdown above 60°C °C -13 °F to 32 °F
Cooling vario fan
Protection degree IP23 (vertical mounting)
Humidity protection conformal coating, max. 95 % relative humidity, non condensing
Protections over-temperature, overload, short circuit, high/low battery voltage
Power Assist yes, supports AC input with power from the battery
Power Sharing yes, allows you to select AC Input fuse setting
MasterBus compatible Yes
CZone / NMEA 2000 compatible Yes

What’s in the Box:

  • CombiMaster 24/3500-100 (120 V)
  • Temperature sensor with cable and plug
  • MasterBus terminator
  • RJ45-M12 Drop cable CZone (1m)
  • Mounting bracket
  • User and installation manual

Additional information

Weight 38.00 lbs
Model Number 35523500
UPC 816882022999
