Description

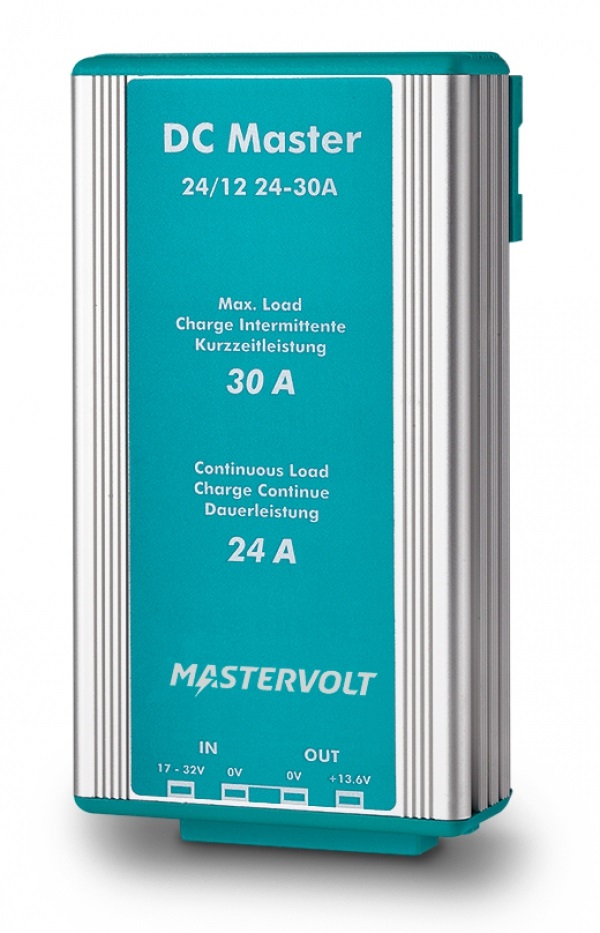

Mastervolt DC master 24/12-24A DC-DC Converter, Non-Isolated
Model: 81400330
- Recreational and semi-professional use.
- Easy to install using included mounting bracket, screws and fasteners.
- Smart electronics mean no unnecessary heat generation.
- Continuous output.
- Two minutes of extra power for short power boosts.
Specifications
| General Specifications | |
| Nominal output voltage | 13.6 V |
| Max. output power | 408W |
| Nominal output power | 326W |
| Max. output current (for 2 min. intervals) | 30A |
| Continuous output current | 24A |
| Nominal input voltage | 24V |
| Input voltage range | 20-32V |
| Galvanic isolation | No |
| Stabilised | Yes |
| Approvals | CE, E-mark |
| Technical Specification | |
| DC consumption | < 10 mA |
| Connections | Fast-on |
| Temperature range (ambient temp.) | -13 °F to 176 °F |
| Sound level | < 30 dBA at 1 mtr |
| Protection degree | IP53 |
| Cooling | Natural cooling |
| Dimensions | 6.6 x 3.4 x 2.0 inch |
What’s in the Box:
- DC Master 24/12-24A Non isolated
- Mounting bracket with fastenrs
- Documentation
