Description

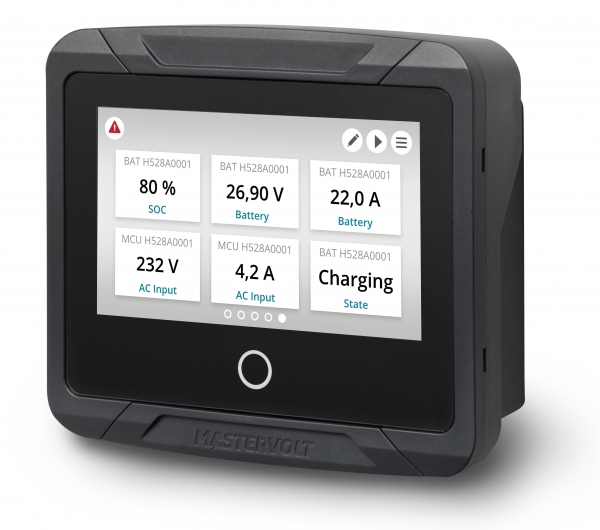

Mastervolt easyView 5 Waterproof System Monitor with ‘daylight readable’ display and intuitive touchscreen
Model: 77010310
- Water proof, ‘daylight readable’ colour display.
- Intuitive touch control.
- Customizable favourite pages.
- Log book for warnings and alarms.
- Buzzer and Home button.
- Easy mounting: front mount, wall mount or retrofit.
- MasterBus powered, or 12/24 V input.
- Easy updating through MasterBus and USB.
Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the colour touchscreen and multi-language menu, the display is a pleasure to operate. Easily customizable favourite pages show all relevant system information at a glance.
The EasyView 5 completes any MasterBus system. With its handy functionality and compact size, the EasyView is ideal for yachts, vehicles and stationary systems. Applicable in various markets such as marine, mobile (recreational and professional), infrastructure, offshore, off grid and industrial. The possibilities are endless!
Specifications
| Power supply | MasterBus powered, or 12/24 V input (9 – 32 V) |
| Resolution | 480 x 272 pixels |
| Colour depth | 16 bits |
| Display/read-out | 4.3 inch high contrast display with capacitive touch control |
| Mounting | panel mounting, flush mounting, MasterView Easy retrofit |
| Alarms | buzzer integrated |
| Dimensions, hxwxd | 4.4 x 5.0 x 1.7 inch |
| MasterBus connection | Yes |
| Power consumption | < 160 mW (idle mode) |
| Connections | 2x MasterBus, USB, 12/24 V |
| Temperature range (ambient temp.) | -4 °F to 158 °F |
| Protection degree | IP67; waterproof front |
What’s in the Box:
- EasyView 5
- MasterBus cable (6 meter / 20ft)
- MasterBus terminator
- 12/24 V connector
- Mounting screw (4 pcs) 4x30mm PH2
- Mounting screw (4 pcs) 4x14mm PH2
