Description

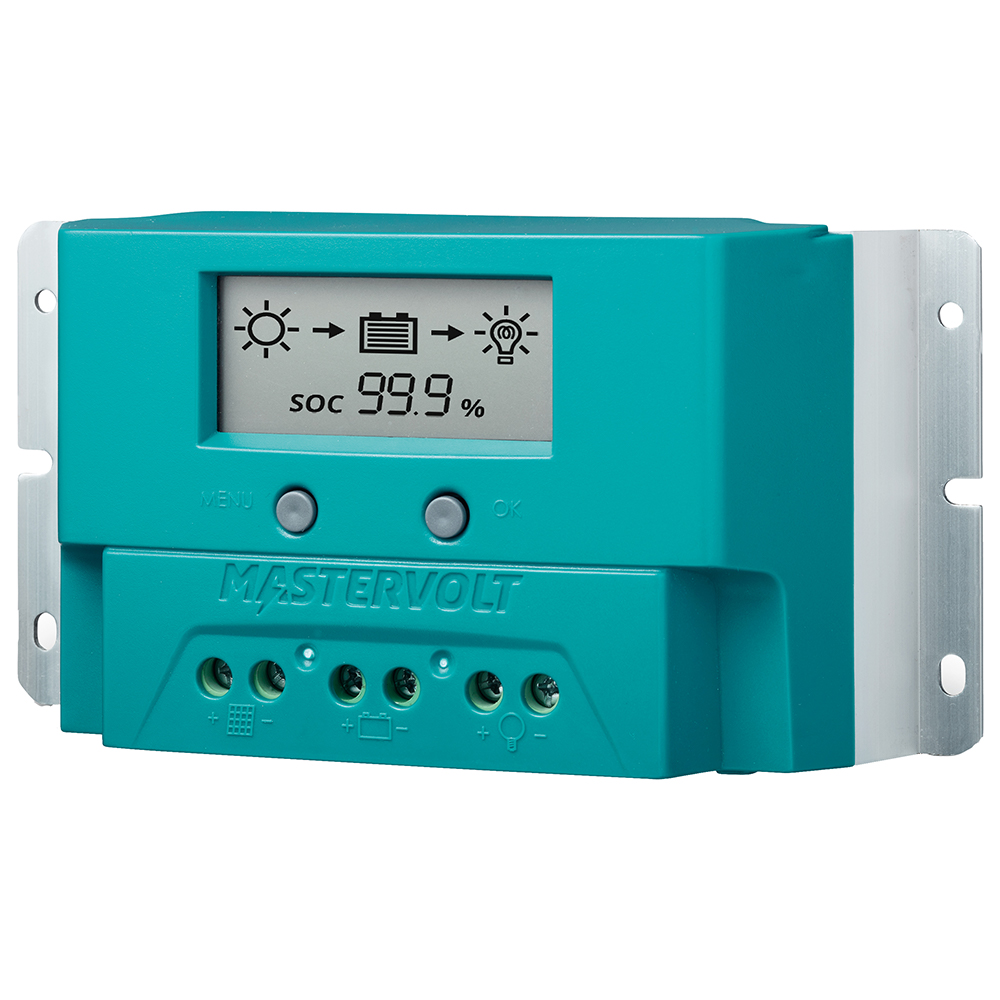

SCM40 PWM
Features:
- High efficiency: your batteries are charged quickly
- Capacity for solar panel configurations of up to 3600 Wp
- Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries
- Fast and flexible setting of battery type
- Battery temperature sensor for long lifespan
- Automatic 12V and 24V detection
- Switchable output
- Noiseless operation
- LCD display
- Fully protected against overtemperature, overload, high/low battery voltage, high/low PV voltage, short circuit and reverse polarity
Specifications:
- System Voltage Battery: 12/24V auto select
- Battery Types: AGM, gel, wet, Lithium Ion
- Battery Temp Sensor: Yes
- Max Charge Current at 25 degrees C/77 degrees F: 40A
- Switchable Output (Max Current): 40A
- Energy Comsumption (night): 4 mA
- Communication: PC-Link (optional)
- Cooling: passive
- Display/Read-Out: LCD display with battery state of charge, status output, battery setting
Inverter Input Voltage = NONE | Inverter Cont. Output Wattage = NONE | Charging Banks = NONE | Charger Output Voltage = NONE | Charger Output - Amps = NONE | Charger Input - Voltage = NONE | Outlet Qty = NONE | Inverter Output Voltage = NONE
