Description

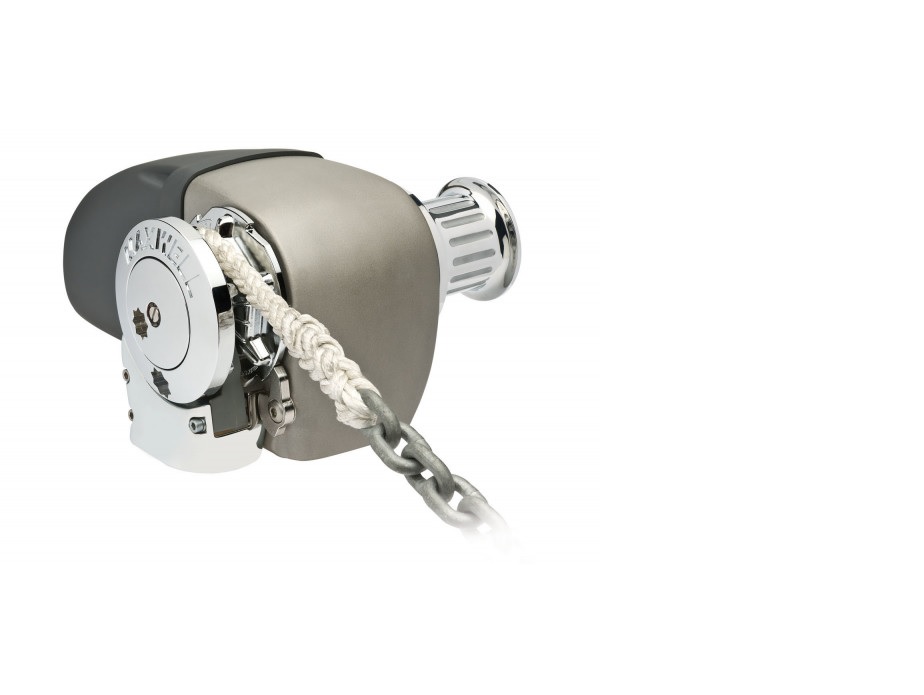

Maxwell HRC10-10 12V Horizontal Windlass for 9/16″ Chain an 5/8″ Line
Model: HRC101012V
The HRC10 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell’s previous, fully automatic rope/chain anchor winches. The all new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 10 mm (9/16") and 10 mm (3/8") short link chain and 14 mm (9/16") and 16 mm (5/8") three strand or 8-brait (plait) rope.
Specifications
| Drum | Yes |
| Motor (W) | 1000 |
| Maximum pull/lift (kg) | 700 |
| Chain short link (mm) | 10mm |
| Rope | 16mm, 5/8″ |
| Voltage (V) | 12vDC |
What’s in the Box:
- HRC10-10 Windlass
- Circuit Breaker
- Reversing Solenoid 12v
- Up/Down Switch Panel
- Clutch Release Handle
